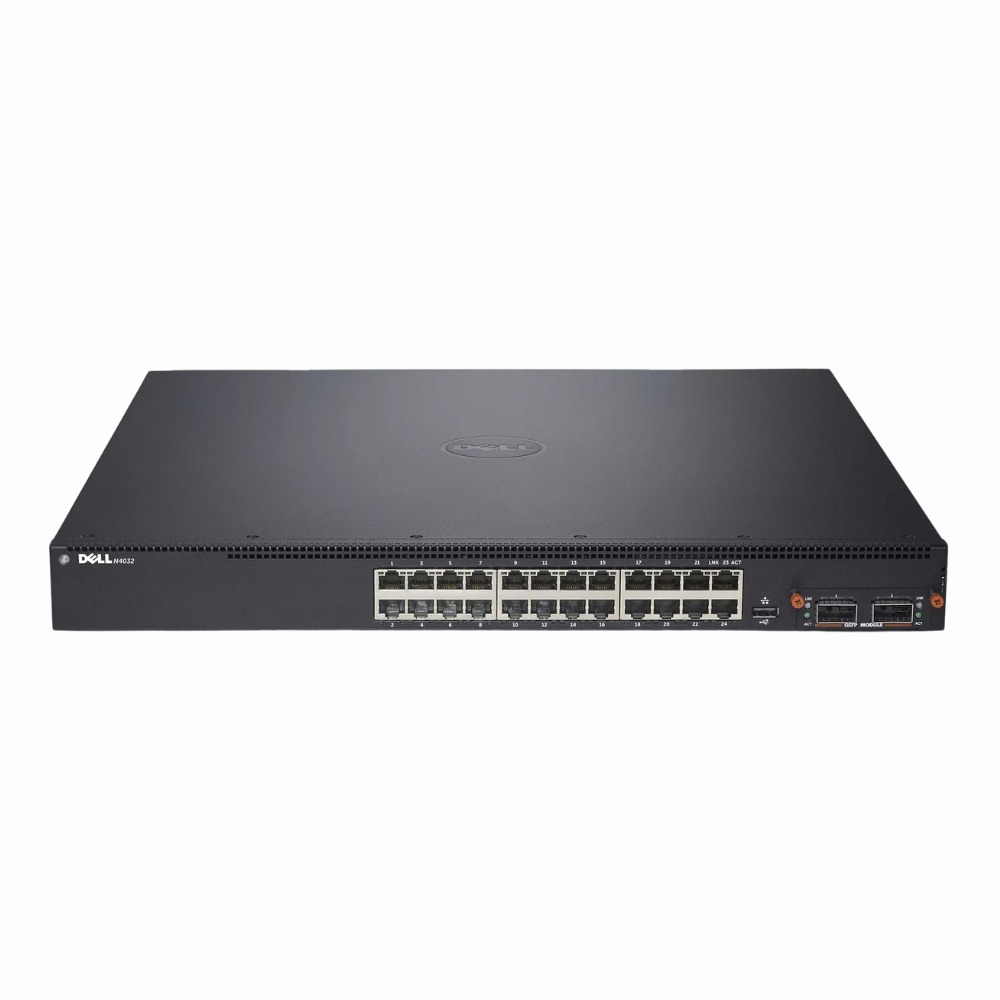

Name: 463-7697 Dell PowerConnect N4032 24-Port 10GBase-T Layer 3 Managed Switch
Brand: Dell
SKU: 463-7697
Price: 837.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Dell PowerConnect N4032 acts as a versatile Layer 3 managed switch that fits into 1U rack spaces, offering 24 10GBase-T RJ-45 ports. It fits well in environments needing both high-speed connectivity and advanced network management, bridging the gap between performance and flexible deployment.

General Information
Brand	Dell
Part Number	463-7697
Condition	Refurbished

Technical Information
Switch Ports	24 x 10GBase-T RJ-45, 8 x 10G SFP+
Number of Ports	32-Ports
Port Type	10GBase-T, SFP+, USB Console, Serial Console (RJ-45)
Port Speed	10 Gbps
UpLink Ports	8 x 10G SFP+
POE Support	No
Switching Capacity	640 Gbps
Switch Forwarding Rate	476.19 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Latency	< 2 µs (typical at line rate)
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32K

Management and Configuration
Routing Protocols	Static, RIP, RIPng, OSPF, OSPFv3, BGP, VRRP, HSRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Web GUI (HTTP/HTTPS), CLI (SSH/Telnet), Serial Console, SNMP, RMON, sFlow
Security Features	ACLs, 802.1X authentication, RADIUS, TACACS+, Port Security, DHCP Snooping, BPDU Guard, Storm Control
Security	802.1X,RADIUS,TACACS+
Remote Management Protocol	SNMPv1,v2c,v3,SSH,Telnet,HTTPS,RMON,sFlow
Routing Protocol	Static,RIP,OSPF,OSPFv3,BGP,VRRP

Power & Cooling
Fans	Front-to-back hot-swappable fans

Physical Characteristics
Dimensions	1.72 x 17.5 x 16.9 in (43.6 x 445 x 430 mm)
Weight	5.00
Operating Temperature	0°C to 40°C

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s

Product Description
The Dell PowerConnect N4032 is a robust network switch designed to handle demanding enterprise environments. It delivers high-performance 10GBase-T connections across 24 RJ-45 ports, providing fast and stable network access. Often deployed in data centers and large office networks, this switch is built for users who require reliable Layer 3 routing and management features. Engineered to fit into standard 1U rack spaces, it integrates smoothly into existing network infrastructures. Network administrators and IT teams commonly use it to ensure scalable and efficient network operations. Key Features Advanced Layer 3 routing options to efficiently manage network traffic High-density 10GBase-T ports for enhanced connectivity and speed Rack-mountable 1U form factor conserving valuable equipment space Comprehensive management tools for simplified network administration Robust Gigabit Ethernet support for diverse networking needs This switch frequently appears in mid to large-scale enterprise setups where both speed and reliability are critical. Its routing capabilities help optimize traffic flow, making it a dependable backbone for corporate networks. By handling a variety of network demands, the Dell PowerConnect N4032 plays a significant role in maintaining smooth day-to-day operations across IT environments.

Use Cases
The Dell PowerConnect N4032 is designed for network environments requiring high-bandwidth, low-latency connectivity combined with robust routing capabilities. Typical deployments include enterprise data centers and campus networks where 10GBase-T connectivity over copper is preferred for cost-effective, short-range connections. How It's Used: Aggregation layer switch in enterprise campus networks supporting high-density 10GbE access. Top-of-rack switch in virtualization environments, providing fast connectivity to storage and compute nodes. Edge switch in mid-size data centers managing both Layer 2 and Layer 3 traffic for segmented workloads. Network backbone component for SMB IT infrastructure seeking scalable Gigabit Ethernet performance with advanced routing. High-speed connectivity solution for storage clusters requiring reliable packet delivery and network efficiency. This switch facilitates operational efficiency by consolidating routing and switching layers within a 1U form factor, allowing scalable network architectures. Its advanced Layer 3 features enable seamless inter-VLAN routing, enhancing network segmentation and reducing latency across demanding enterprise workloads.
