Name: 4610-54T-O-AC-F-V1 NVIDIA Mellanox 48-Port GE RJ-45 + 4x 10G SFP+ ONIE Managed Switch
Brand: Mellanox
SKU: 4610-54T-O-AC-F-V1
Price: 185.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview

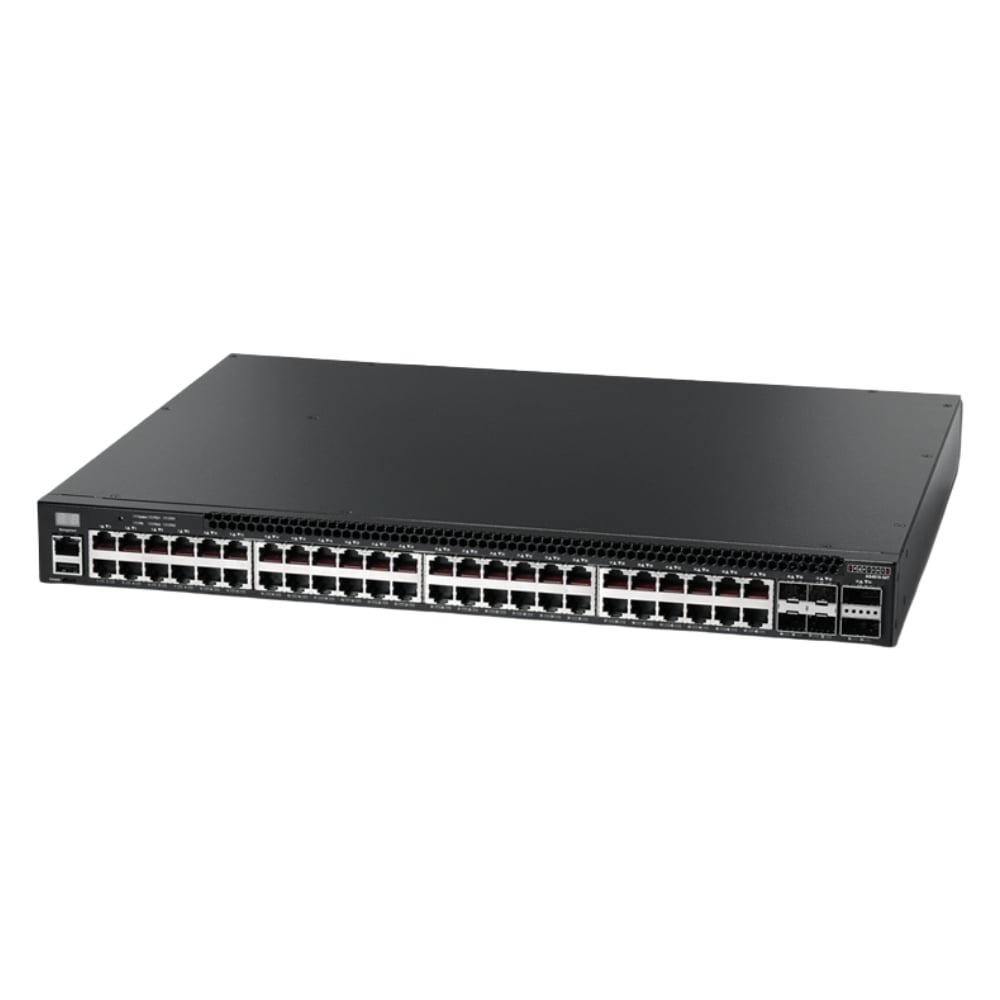

The NVIDIA Mellanox AS4610-54T offers a solid mix of gigabit access ports and 10G uplinks, making it a versatile choice for dense wiring environments. Its ONIE compatibility allows operators to install a preferred network OS, fitting into various network architectures without hassle. This switch sits comfortably in medium to large scale deployments where consistent performance and manageability are top priorities.

General Information
Brand	Mellanox
Part Number	4610-54T-O-AC-F-V1
Condition	Refurbished
Alternate Part Number	4610-54T-O-AC-F-V1-12-HU

Technical Information
Switch Ports	48
Number of Ports	54-Ports
Port Type	10/100/1000Base-T, 10G SFP+, RJ-45, USB Console, Serial Console (RJ-45)
Port Speed	1 Gbps,10 Gbps
UpLink Ports	4 x 10G SFP+
POE Support	No
Switching Capacity	176 Gbps
Switch Forwarding Rate	343.75 Mpps
DRAM	1 GB
Flash Memory	4 GB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Latency	< 2 µs (typical)
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, BGP, VRRP, HSRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Web GUI,CLI (SSH,Telnet),SNMPv1/v2/v3,Serial Console (RJ-45),USB Console,REST API,ONIE
Security Features	802.1X,Access Control Lists (ACLs),Port security,SSH,SNMPv3,ARP inspection,Storm control
Security	Yes
Remote Management Protocol	SSH,Telnet,HTTP/HTTPS,SNMPv1/v2/v3,REST API
Routing Protocol	Static,OSPF,BGP

Power & Cooling
Fans	2 (field-replaceable, hot-swappable)
Power	AC 100-240V, 50/60Hz

Physical Characteristics
Dimensions	1.72 x 17.24 x 16.93 inches
Weight	9.50
Operating Temperature	0°C to 40°C

Miscellaneous
Compliance Standards	RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3ae,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1s,IEEE 802.3ad,IEEE 802.1X

Product Description
The NVIDIA Mellanox AS4610-54T is a network switch designed to handle demanding data center and enterprise environments. It provides 48 RJ-45 Gigabit Ethernet ports ideal for connecting a large number of devices with reliable wired speeds. Often found in server racks and network closets, this switch offers 10G SFP+ uplinks, giving network administrators the ability to aggregate traffic efficiently or connect to higher-speed backbone networks. It’s built for IT teams needing both flexibility and manageable performance in medium to large networks. Key Features High port density supports numerous endpoints without extra hardware 10G uplinks enhance bandwidth for critical data flows ONIE support simplifies network OS deployment and upgrades Advanced management tools allow fine-tuned network control Robust design suits continuous operation in enterprise settings This switch is typically deployed in data centers, enterprise wiring closets, or campus networks where reliable gigabit connections and high-speed uplinks are essential. It helps maintain network stability while supporting the growing data needs of modern applications.

Use Cases
The NVIDIA Mellanox AS4610-54T switch is designed for network environments requiring dense gigabit access combined with high-speed uplinks. It is well-suited for enterprise IT departments and data centers looking to consolidate wired connectivity while maintaining flexibility in their network OS deployment. How It's Used: Deploying in campus networks to provide reliable gigabit access for office workstations with scalable 10G uplinks for core aggregation. Integrating into SMB data centers needing a cost-effective switch that supports multiple OS options for tailored networking solutions. Supporting edge computing sites where high port density and managed control enhance connectivity for localized workloads. Facilitating virtualization environments that require consistent throughput and manageable network segmentation. Connecting storage clusters in medium-sized networks where flexible uplinks ensure efficient data flow and redundancy. This switch's combination of port density and ONIE-enabled flexibility aids in streamlining network operations while supporting growth. Its managed features allow IT teams to maintain control over performance and security, making it a practical choice for evolving infrastructure demands.
