| Product Overview |
|---|

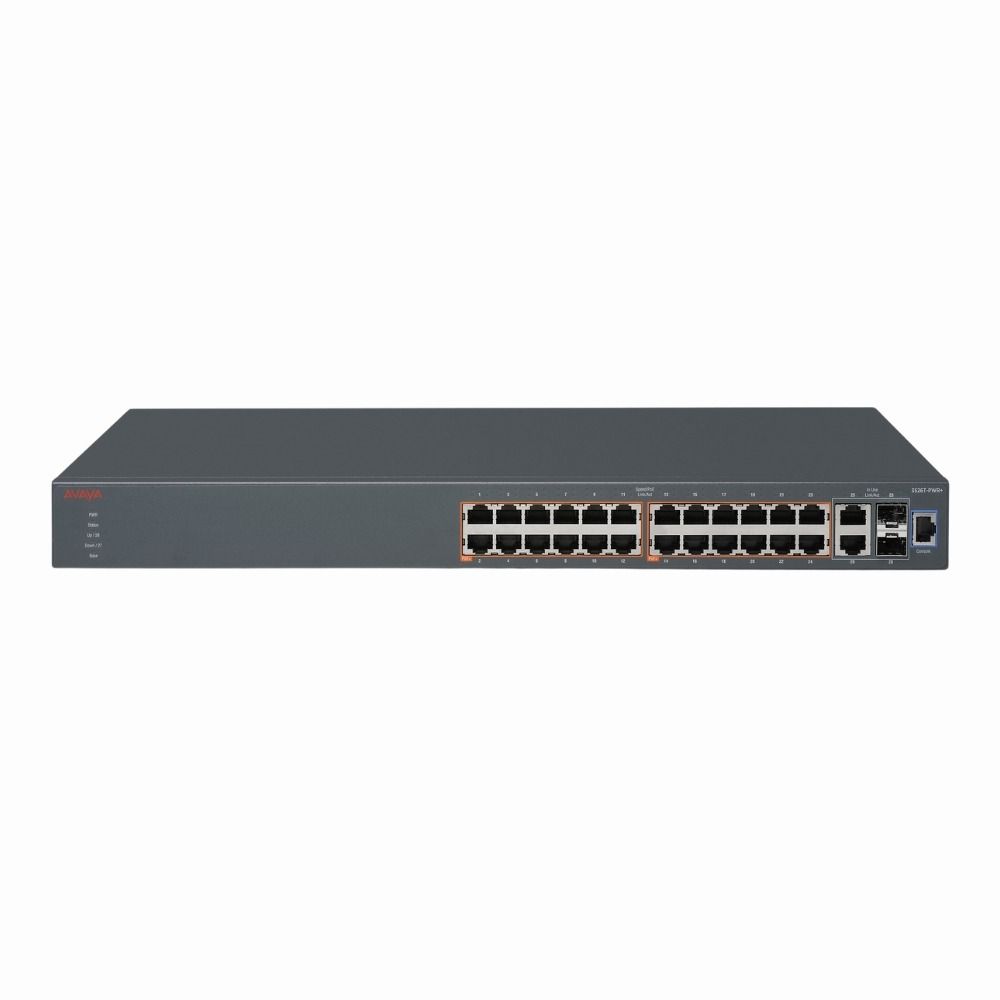

The Avaya 3526T-PWR+ switch combines fast Ethernet connectivity with PoE+ power delivery and Layer 3 routing, making it a versatile option for networks needing both data and power over a single infrastructure. Its stackable design helps scale network capacity while maintaining straightforward management, fitting well in business environments requiring dependable network performance and device support. |
| General Information | |
|---|---|
| Brand | Avaya |
| Part Number | 3526T-PWR+ |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 3, Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 24 x 10/100Base-T PoE+ RJ-45 ports, 2 x Gigabit SFP uplink ports |
| Number of Ports | 24-Ports |
| Port Type | RJ-45, SFP |
| Port Speed | 10/100 Mbps |
| UpLink Ports | 2 × combo 10/100/1000 Mbps (front); 2 × SFP/2.5 Gbps stack (rear) |
| POE Support | PoE+ |
| Switch Forwarding Rate | 12.8 Gbps |
| DRAM | 128 MB |
| Flash Memory | 32 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Layer Support | Layer 3 Lite |
| Connector Type | RJ-45, SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, IGMP |
| Remote Protocols | CLI, SNMP, web GUI |
| Management Interfaces | Console (RJ‑45), Ethernet management, SNMP, GUI |
| Security Features | 802.1X, ACLs, DHCP snooping, storm control |
| Management Type | Web GUI (HTTP/HTTPS), CLI, SNMP |
| Security | 802.1X, Access Control Lists (ACLs), SSH, HTTPS, Port Security, MAC Authentication |
| Remote Management Protocol | SNMP, HTTP, HTTPS, SSH, Telnet |
| Routing Protocol | Static, RIP, OSPF |
| Power & Cooling | |
|---|---|
| Fans | Fanless (silent) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.75″ × 17.5″ × 11″ |
| Weight | 10.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ad |
| Product Description |
|---|
The Avaya 3526T-PWR+ is a 24-port Fast Ethernet switch that includes Power over Ethernet Plus (PoE+) functionality. It's built to efficiently handle network traffic while supplying power to connected devices such as IP phones, wireless access points, or security cameras. Often found in small to medium-sized business networks, this switch supports Layer 3 features, enabling better routing and network segmentation. Network administrators benefit from its stackable design, which simplifies growing network environments by allowing multiple switches to operate as a single unit. Key Features
This switch is commonly deployed in office networks, retail environments, and campus settings where reliable connectivity and device power are necessary. Its ability to consolidate network management through stacking reduces complexity and helps keep operations running smoothly. |
