| Product Overview |
|---|

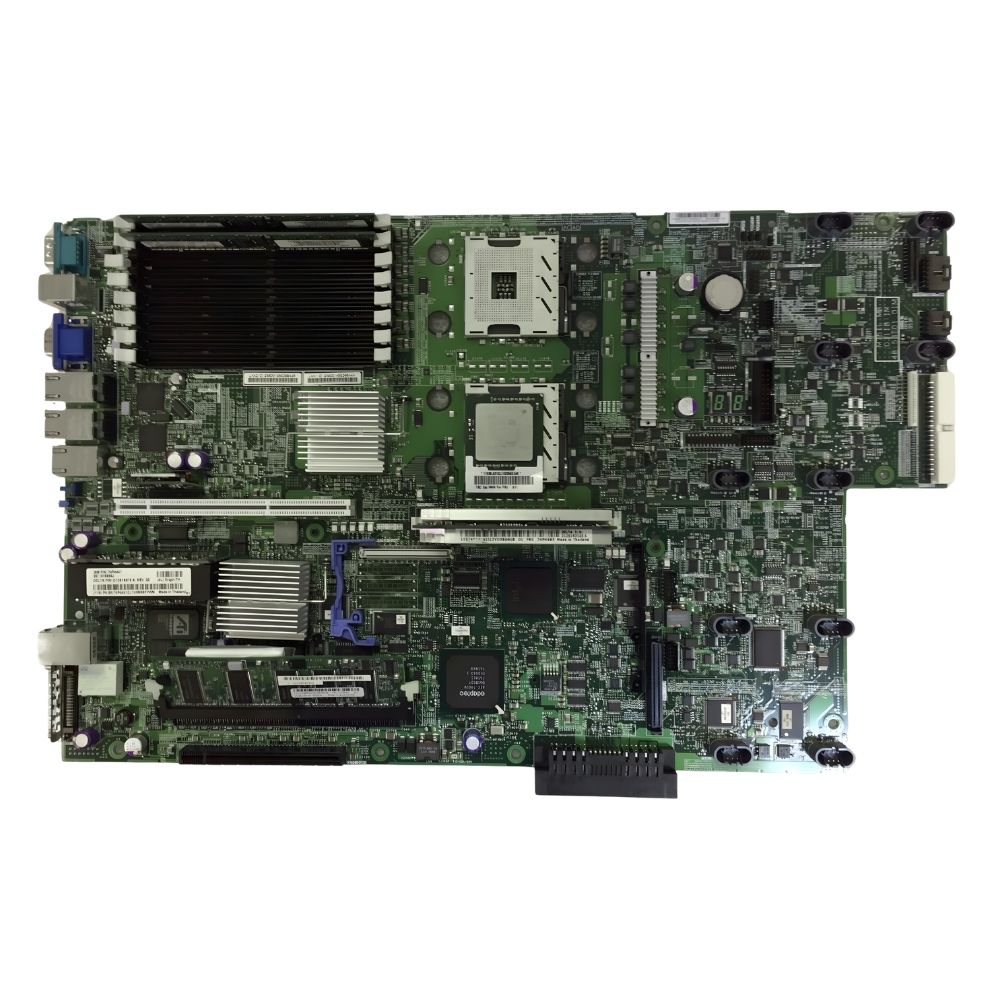

The IBM 32R1956 System Board is the main circuit board for the eServer xSeries x346, coordinating processor, memory, and peripheral functions. It fits into the server chassis to enable smooth communication between hardware components, supporting the server's workload needs in typical business or data center environments. |
| General Information | |
|---|---|
| Brand | IBM |
| Part Number | 32R1956 |
| Technical Information | |
|---|---|
| Chipset | Intel 5000X (Greencreek) |
| Compatible Processors | Intel Xeon 5100 series (Woodcrest), Intel Xeon 5300 series (Clovertown) |
| Board Socket Type | LGA771 |
| Memory Slots | 8 |
| Memory Support | DDR2 FB-DIMM ECC (registered) up to 32GB (typical configuration: 8 x 4GB) |
| Storage Interfaces | SAS, SATA (via server backplane / HBA or RAID controller) |
| Expansion Slots | PCI-X, PCIe (model-dependent slot configuration) |
| USB Port | 2 |
| Physical Characteristics | |
|---|---|
| Form Factor | Proprietary (IBM eServer system board for xSeries rack chassis) |
| Condition | Refurbished |
| Miscellaneous | |
|---|---|
| Assembly Required | Yes |
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, cURus, CE, FCC, CCC, UL, TUV, cULus, CSA, cUL |
| Product Description |
|---|
This IBM System Board is built for the eServer xSeries x346, serving as the central hub for all server operations. It manages communication between the processor, memory, and peripheral devices to keep the system running smoothly. Often found in enterprise environments, this motherboard supports the demanding workloads typical of medium-sized data centers and server rooms. IT professionals and system administrators rely on it to maintain server stability and performance. Key Features
This system board is typically deployed in business-critical servers where reliability and scalability matter. It plays a crucial role in keeping enterprise applications running without interruption, providing a dependable foundation for server operations. |
