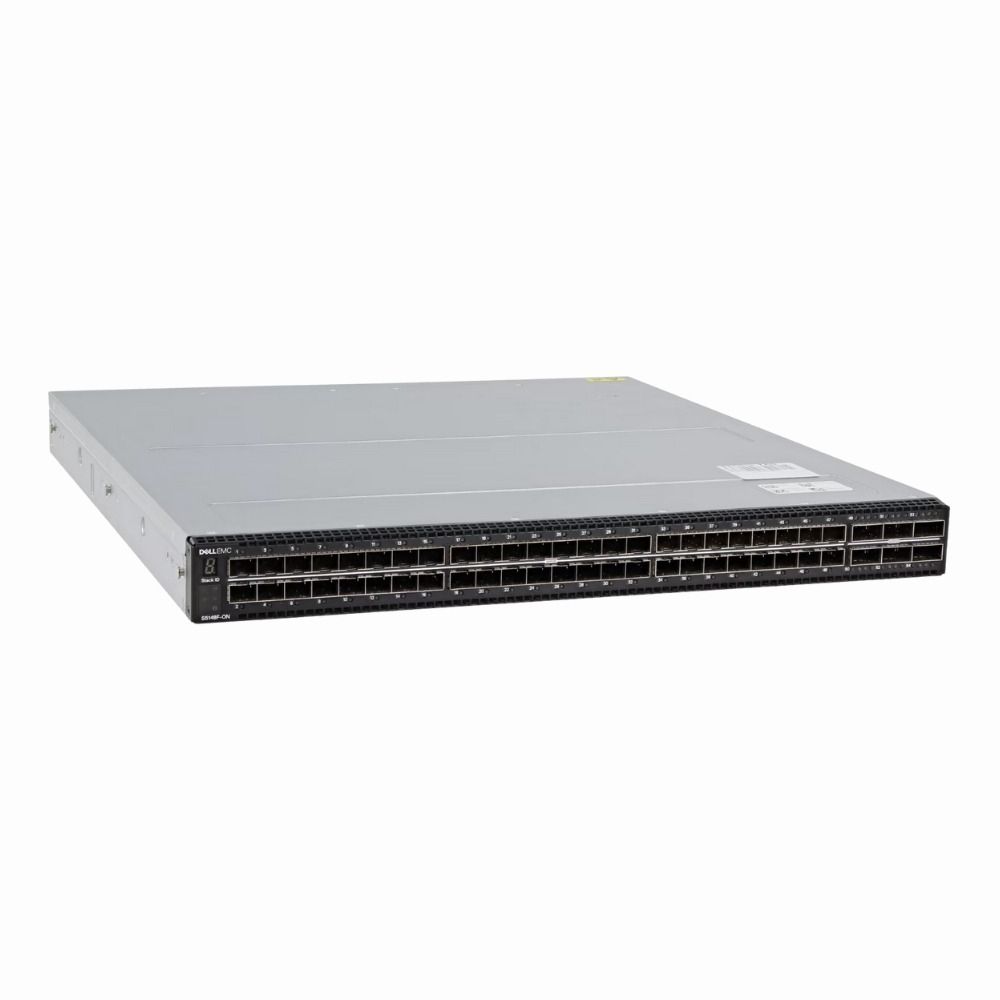

Name: 210-AYML Dell PowerSwitch S5200-ON Series S5248F-ON 48 x SFP28 Ports 25Base-X + 4 x QSFP28 Ports Layer 3 Managed 1U Rack-Mountable Gigabit Ethernet Network Switch
Brand: Dell
SKU: 210-AYML
Price: 5076.92 USD
Availability: InStock
Rating: 4.9 (108 reviews)

Product Overview
The Dell PowerSwitch S5248F-ON combines high-speed 25GbE access with powerful Layer 3 routing in a compact 1U rack-mountable chassis. It fits seamlessly into data centers and enterprise networks needing scalable and manageable Ethernet switching. This switch balances port density and uplink speed, making it a practical choice for modern network environments.

General Information
Brand	Dell
Part Number	210-AYML
Condition	Refurbished

Technical Information
Switch Ports	48 SFP28 + 4 QSFP28
Number of Ports	48-Ports
Port Type	25G SFP28, 100G QSFP28
Port Speed	25Gbps (SFP28), 100Gbps (QSFP28); SFP28 ports are backward-compatible with 10Gbps
UpLink Ports	4 x QSFP28 (100GbE) (breakout to 4x25G supported)
POE Support	No
Switching Capacity	3.2 Tbps
Switch Forwarding Rate	6,250 Mpps (64-byte packets)
DRAM	16 GB
Flash Memory	8 GB
VLAN Support	Yes
Max VLANs Supported	1-4094
Layer Support	Layer 3
Connector Type	SFP28, QSFP28

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	288K entries (approx.)

Management and Configuration
Routing Protocols	Static, RIP, RIPng, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP, MLD
Remote Protocols	Yes
Security Features	802.1X, ACLs, Port Security, RADIUS/TACACS+, DHCP Snooping, IP Source Guard, ARP Inspection, SSH/SSL
Management Type	CLI, SNMP, REST API, Web GUI (depending on OS/agent)
Security	Yes
Remote Management Protocol	SNMPv1/v2c/v3, SSH, Telnet, HTTP/HTTPS, REST API
Routing Protocol	Static, RIP, OSPF, BGP, VRRP, PIM

Power & Cooling
Fans	Hot-swappable redundant fans (front-to-back), field-replaceable (3)
Power	Dual hot-plug redundant AC power supplies, 100-240 VAC (typical per-PSU 750W)
Power Supply	2 x 750W AC hot-plug redundant power supplies (installed/available configurations may vary)

Physical Characteristics
Dimensions	1.73 in x 17.3 in x 22.9 in (4.4 x 44.0 x 58.2 cm) (1U rack-mountable)
Weight	5.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3by (25G), IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3x

Product Description
The Dell PowerSwitch S5200-ON Series S5248F-ON is built for data centers and enterprise networks that require robust, high-speed connectivity. It provides 48 SFP28 ports capable of 25GbE speeds, ideal for connecting servers and storage devices with low latency. Often found in environments that need advanced routing, this switch supports Layer 3 features to manage traffic efficiently across complex networks. Network engineers and IT teams rely on it to maintain smooth data flow and scalability. Key Features High-speed 25Base-X ports accommodate demanding bandwidth needs Four 100GbE QSFP28 uplinks ease aggregation and core connectivity Layer 3 capabilities support dynamic routing and robust traffic control Compact 1U form factor integrates well into rack-mounted setups Designed for ease of management with flexible software options This switch is typically deployed in data centers, campus networks, and cloud environments where reliable, scalable connections are critical. It plays a key role in supporting virtualization, storage, and high-performance computing workloads by ensuring consistent network performance.
