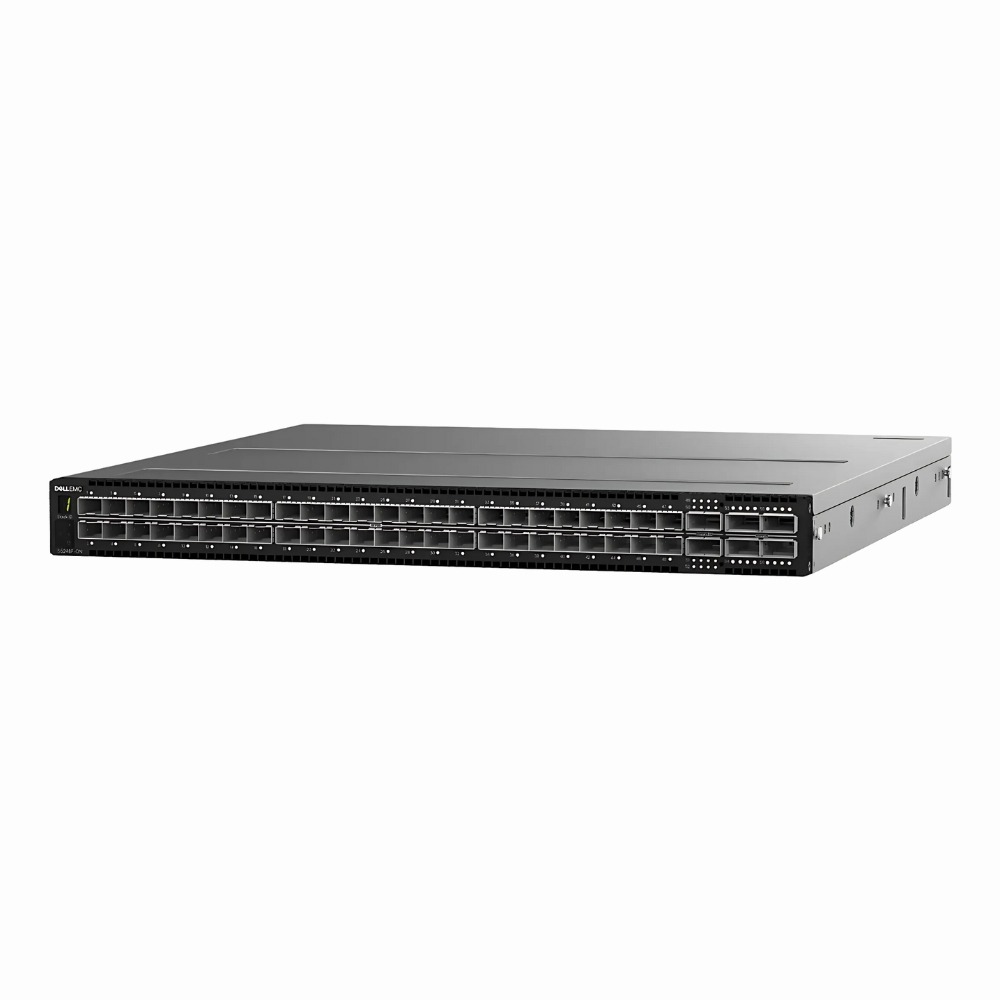

210-AUFO Dell 48-Port 25G SFP28 4-Port 100G QSFP28 2-Port 200G QSFP28-DD L3 Switch

SKU:
210-AUFO
Weight: 5.00 lbs
Condition: Refurbished
  • 48 ports supporting 25GBase-X SFP28 connections for high-speed data transfer
  • 4 ports with 100GBBase-X QSFP28 for versatile uplink options
  • 2 ports offering 200GBase-X QSFP28-DD for ultra-fast network aggregation
  • Layer 3 managed switch with rack-mountable 1U design, ideal for data centers
In stock

$3,249.00

Product Overview

The Dell S5248F-ON switch delivers versatile high-speed connectivity with its combination of 25G, 100G, and 200G ports, making it a solid choice for data centers and enterprise networks. Its Layer 3 management and compact rack-mount design allow it to fit comfortably into core networking roles without taking up excessive space.

General Information

Brand Dell
Part Number 210-AUFO
Condition Refurbished

Technical Information

Switch Ports 48-Ports
Number of Ports 48-Ports
Port Type 25G SFP28, 100G QSFP28, QSFP / QSFP+, USB Console, Serial Console (RJ-45)
Port Speed 25Gbps,100Gbps,200Gbps
UpLink Ports 4 x 100G QSFP28,2 x 200G QSFP28-DD
POE Support No
Switching Capacity 4 Tbps
Switch Forwarding Rate 5952 Mpps
DRAM 16 GB
Flash Memory 16 GB
VLAN Support Yes
Max VLANs Supported 4094
Layer Support Layer 3
Connector Type SFP28,QSFP28,QSFP28-DD,USB Console,Serial Console (RJ-45)

Performance

Latency Wire-speed low latency (< 2 µs typical)
Jumbo Frame Support Up To 9216 Bytes
MAC Address Table Size 288K entries (approx.)

Management and Configuration

Routing Protocols Static, RIP, RIPng, OSPF, OSPFv3, EIGRP, BGP, VRRP, HSRP, PIM-SM, IGMP, Policy-Based Routing (PBR)
Remote Protocols Yes
Management Interfaces CLI (SSH), Serial Console (RJ-45), Web GUI, SNMP, REST API, NETCONF, sFlow
Remote Management Protocol SNMPv1/v2c/v3,SSH,Telnet,REST API,NETCONF,Syslog
Routing Protocol Static,OSPF,OSPFv3,BGP,VRRP,IGMP,PIM-SM

Power & Cooling

Fans Hot-swappable redundant fans (front-to-back airflow), 3 fans
Power Supply Dual redundant, hot-swappable AC power supplies (hot-swap)

Physical Characteristics

Weight 5.00
Operating Temperature 0°C to 40°C

Miscellaneous

Compliance Standards WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards IEEE 802.3,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ad,IEEE 802.3x,IEEE 802.1D,IEEE 802.1s


Product Description

This Dell S5248F-ON switch is built to handle demanding networking environments by providing a mix of high-speed 25G, 100G, and 200G ports. It's commonly found in data centers and enterprise networks where flexible connectivity and robust management are essential. Network administrators and IT professionals benefit from its Layer 3 capabilities, which allow for advanced routing alongside efficient switching.

Key Features

  • Offers a total of 54 high-speed ports for diverse networking needs
  • Layer 3 support enables dynamic routing and network segmentation
  • Compact 1U form factor fits standard racks with ease
  • Supports QSFP28-DD for the latest high-capacity uplink standards
  • Detailed management options improve network control and monitoring

In real-world setups, this switch is often deployed within enterprise core layers, data center aggregation points, or high-capacity server farms. It helps maintain fast, reliable connections while simplifying network complexity through its management flexibility.


Use Cases

The Dell 210-AUFO switch is engineered for environments requiring high-density, high-throughput connectivity such as modern data centers and enterprise core networks. It supports advanced network architectures where scalable bandwidth and low latency are critical, making it ideal for IT teams managing virtualization, storage, and cloud workloads.

How It's Used:

  • Aggregating traffic in hyperscale data centers requiring mixed 25G, 100G, and 200G uplinks for flexible bandwidth allocation.
  • Supporting leaf-spine network architectures in enterprise IT environments to optimize east-west traffic flows with Layer 3 routing.
  • Connecting high-performance computing clusters where low latency and high port density are necessary to maintain efficient processing pipelines.
  • Facilitating scalable storage area networks (SANs) that rely on high-speed 25G and above connections for rapid data access and backup.
  • Enabling edge computing deployments where compact 1U rack switches provide robust connectivity without excessive space consumption.

By integrating multiple high-speed port types within a single compact unit, this switch helps organizations streamline network operations while providing the scalability needed for evolving workloads. Its Layer 3 capabilities ensure efficient routing and segmentation, essential for maintaining performance and minimizing downtime in demanding network environments.
