| Product Overview |
|---|

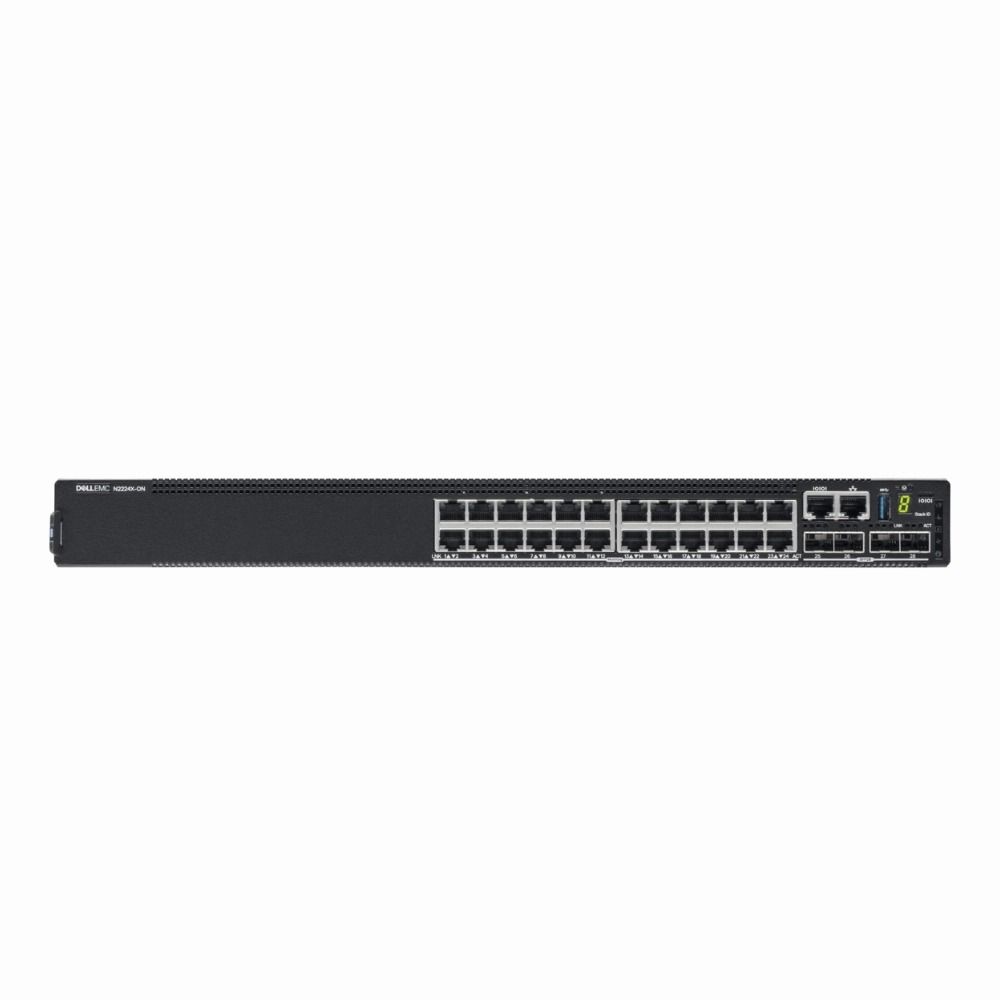

The Dell EMC PowerSwitch N2224X-ON offers 24 ports at 2.5 Gigabit Ethernet speeds and runs on the OS6 operating system. It fits well in environments aiming to upgrade from 1GbE without jumping straight to 10GbE, delivering a good mix of speed and manageability. With built-in PoE capabilities and open networking options, it provides flexibility for a range of enterprise networking needs. |
| General Information | |
|---|---|
| Brand | Dell |
| Part Number | 210-ASPY |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10G SFP+, 2.5GBase-T |
| Port Speed | 2.5Gbps,10Gbps |
| UpLink Ports | 4 |
| POE Support | No |
| Switching Capacity | 200 Gbps |
| Switch Forwarding Rate | 297.6 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16K entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP |
| Remote Protocols | Yes |
| Management Interfaces | CLI (Console/SSH), Web GUI, SNMP, REST API |
| Security Features | 802.1X, Access Control Lists (ACLs), RADIUS, TACACS+, Port Security, SSH, SSL |
| Management Type | In-band (SSH/SNMP), Out-of-band (Console) |
| Remote Management Protocol | SNMPv1/v2c/v3, SSH, Telnet, REST API |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3x, IEEE 802.1X |
| Product Description |
|---|
The Dell EMC PowerSwitch N2224X-ON is built for organizations needing reliable, high-speed connectivity in a compact switch. It's commonly used in data centers, enterprise networks, and campus environments where 2.5GbE speeds provide a balance between existing 1GbE setups and faster 10GbE links. IT teams and network administrators often find this model beneficial for aggregating multiple devices or uplinks without upgrading all infrastructure to 10GbE. The included OS6 operating system offers flexible network management with open networking capabilities. Key Features
You'll typically find the N2224X-ON deployed in settings requiring denser port counts at mid-tier speeds, such as branch offices or wiring closets. It helps improve network speeds while keeping costs and complexity manageable. Its PoE support also reduces the need for separate power supplies for connected devices. |
