| Product Overview |
|---|

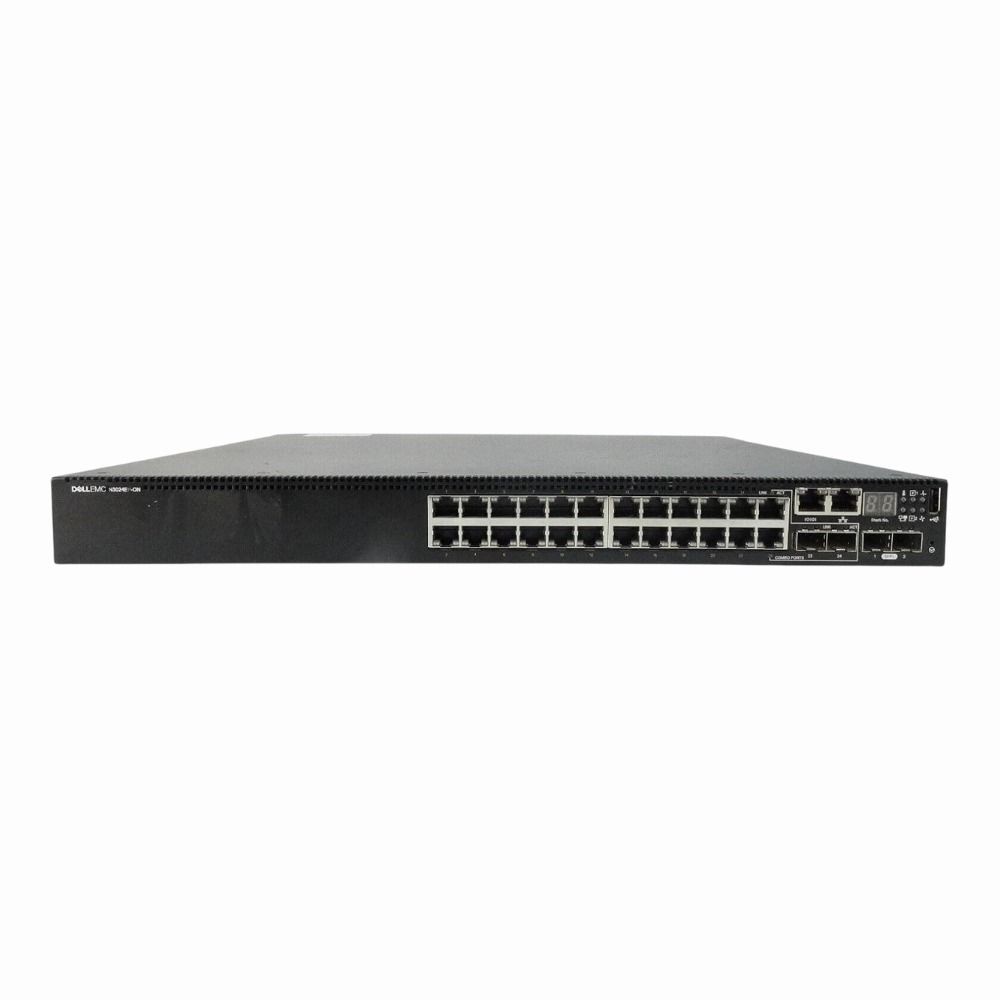

The Dell Networking N3024EP-ON is a 24-port managed switch that combines Layer 3 routing with PoE+ and UPoE capabilities. It fits well in business networks where powering devices over Ethernet and managing traffic efficiently are essential. This switch balances performance and power delivery, making it a practical choice for IT teams handling complex network setups. |
| General Information | |
|---|---|
| Brand | Dell EMC |
| Part Number | 210-APWX |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 3, Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 24 x 10/100/1000 RJ45 PoE+ ports, 4 x 10Gb SFP+ uplink ports |
| Number of Ports | 28-Ports |
| Port Type | Combo RJ-45/SFP, RJ-45, SFP+ |
| Port Speed | 24 × 1 Gb, 2 × 1/10 Gb SFP+, 2 × 1 Gb combo |
| UpLink Ports | 2 × dedicated 10 Gb SFP+; 2 × combo 1 Gb |
| POE Support | PoE+ |
| Switching Capacity | 128 Gbps |
| Switch Forwarding Rate | 158 Mpps |
| DRAM | 2 GB |
| Flash Memory | 1 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 4,094 VLANs |
| Layer Support | Layer 2, Layer 3 |
| Connector Type | RJ‑45, SFP/SFP+, Combo, Console (RS‑232), USB, OOB Mgmt |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32K entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | RIP, OSPF, OSPFv3, VRRP, PIM-SM, PIM-DM, IGMP |
| Remote Protocols | SSH‑2, Telnet, SNMP v1/v2/v3, RMON, HTTP/HTTPS, TFTP |
| Management Interfaces | CLI, web GUI, USB, OOB Ethernet |
| Security Features | RADIUS, TACACS+, MD5, AES, 802.1X, ACLs |
| Remote Management Protocol | SNMPv1/v2c/v3, SSH, Telnet, HTTP/HTTPS, RMON, CLI |
| Routing Protocol | Static Routing, RIP, OSPF |
| Power & Cooling | |
|---|---|
| Fans | Hot-swappable variable-speed fans |
| Power | Supports PoE+ (802.3at) and UPoE; PoE power budget dependent on configuration (typical models provide ~370W PoE budget) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.71 × 17.09 × 16.02 in |
| Weight | 15.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X, IEEE 802.3ad (LACP), IEEE 802.3az (Energy Efficient Ethernet) |
| Product Description |
|---|
The Dell Networking N3024EP-ON is a managed Layer 3 switch designed to handle demanding network tasks. It offers 24 Gigabit Ethernet ports capable of delivering Power over Ethernet Plus (PoE+) and UPoE, making it ideal for powering devices like IP phones, cameras, and wireless access points directly through the network cable. Often found in medium to large business networks, this switch supports advanced routing protocols to efficiently manage traffic across different subnets. Network administrators and IT professionals rely on it to maintain a stable and secure network infrastructure while providing flexibility for growth. Key Features
This switch is commonly deployed in enterprise offices, data centers, and campus networks that require reliable connectivity and power delivery over Ethernet. Its ability to combine high-speed networking with PoE support helps reduce cabling complexity by eliminating the need for separate power sources for connected devices. By integrating this switch, organizations gain improved network control and the flexibility to support a variety of devices without frequent hardware upgrades or extensive rewiring. |
