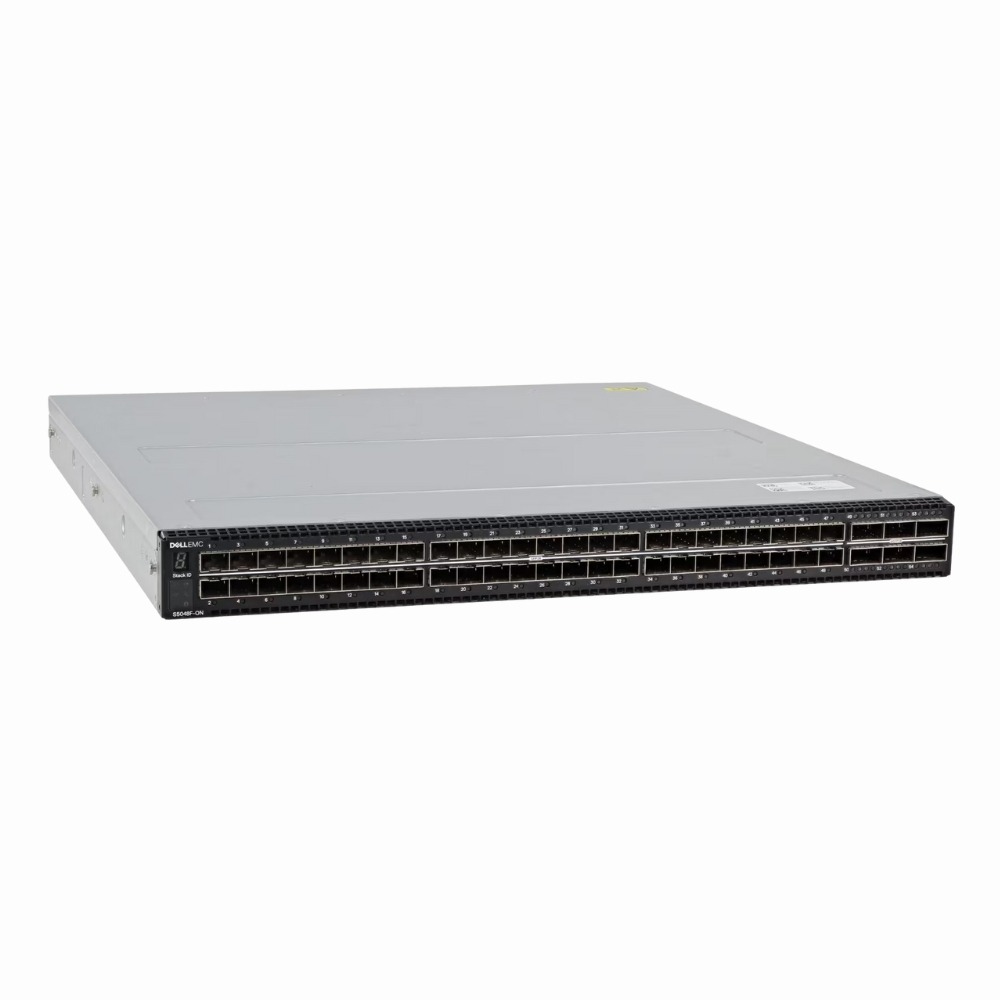

Name: 210-ANRL Dell Networking S-Series S5048F-ON 48 x SFP28 Ports 25GBase-X + 6 x QSFP28 Ports Layer 2 Managed 1U Rack-mountable Gigabit Ethernet Network Switch
Brand: Dell
SKU: 210-ANRL
Price: 2804.19 USD
Availability: InStock
Rating: 4.8 (130 reviews)

Product Overview
The Dell Networking S5048F-ON switch provides a powerful combination of 48 25G ports and 6 100G uplink ports, fitting neatly into a 1U rack space. It's tailored for data centers that need reliable, high-bandwidth connections and flexible network topologies. This switch handles Layer 2 traffic efficiently and supports Dell's OS10, allowing network teams to tailor the device to their specific needs without unnecessary complexity.

General Information
Brand	Dell
Part Number	210-ANRL
Condition	Refurbished

Technical Information
Switch Ports	54
Number of Ports	54-Ports
Port Type	25G SFP28, 100G QSFP28, USB Console, Serial Console (RJ-45)
Port Speed	25G,100G,10G (backward-compatible)
UpLink Ports	6 x QSFP28 (100G)
POE Support	No
Switching Capacity	3.6 Tbps (3600 Gbps)
Switch Forwarding Rate	~7,031 Mpps (approx, based on full-duplex capacity)
VLAN Support	Yes
Max VLANs Supported	1-4094 (4,094 VLANs)
Stackable	No
Layer Support	Layer 3
Connector Type	SFP28,QSFP28,USB Console,Serial Console (RJ-45)

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	~288,000 entries (approx)

Management and Configuration
Routing Protocols	Static, RIP, OSPF, OSPFv3, BGP, VRRP, HSRP, PIM-SM, IGMP, MLD
Remote Protocols	Yes
Security Features	ACLs,802.1X,Port Security,RADIUS/TACACS+ support,DHCP Snooping,IP Source Guard,ARP Inspection,Storm control,BPDU Guard
Routing Protocol	Static, OSPF, BGP, RIP, VRRP (support depends on NOS/firmware)

Power & Cooling
Fans	Front-to-back hot-swappable variable-speed fan modules

Physical Characteristics
Weight	5.00
Operating Temperature	0°C to 40°C

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3ae, IEEE 802.3by, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3x

Product Description
The Dell Networking S-Series S5048F-ON is designed to deliver high-performance switching with a focus on data center environments. It provides 48 SFP28 ports that support 25 Gbps connections, ideal for modern server and storage networking needs. Often found in enterprise and cloud data centers, this switch is built for network administrators who require reliable, low-latency connectivity with flexible uplink options. Its six QSFP28 ports enable aggregation or uplinks at 100 Gbps, enhancing scalability. Key Features Supports high-speed 25GBase-X connections for server access Offers 100G QSFP28 ports for flexible uplink or stacking Includes Layer 2 features for efficient traffic management Compact 1U size fits standard racks without sacrificing port density Runs Dell's OS10 for customizable network configurations This switch is commonly deployed within data centers where dense, high-throughput switches are essential. It plays a key role in connecting servers and storage devices while handling large volumes of traffic with minimal delay. Its design supports environments that demand both speed and flexibility, making it a practical choice for businesses scaling their network infrastructure.

Use Cases
The Dell Networking S5048F-ON switch is optimized for high-density environments requiring substantial bandwidth and low latency. It is particularly suited for data centers and enterprise IT infrastructures where scalable, high-speed connectivity is critical to support virtualization, cloud computing, and large-scale storage networks. How It's Used: Data center fabric deployments connecting servers and storage arrays with 25G links for improved throughput. Enterprise campus core layers requiring high-performance Layer 2 switching with 100G uplinks for aggregation. Cloud service providers implementing scalable network topologies for multi-tenant virtualization environments. High-frequency trading platforms where ultra-low latency and high bandwidth are essential. Edge computing nodes needing compact 1U rack solutions with flexible port configurations for diverse workloads. Storage clusters demanding rapid, lossless data transfers via high-speed SFP28 and QSFP28 optics. This switch supports operational efficiency by consolidating dense 25G connections in a compact form while enabling scalable uplink capacity through 100G ports. Its Layer 2 managed capabilities facilitate traffic segmentation and control, essential for maintaining performance and reliability in demanding network environments.
