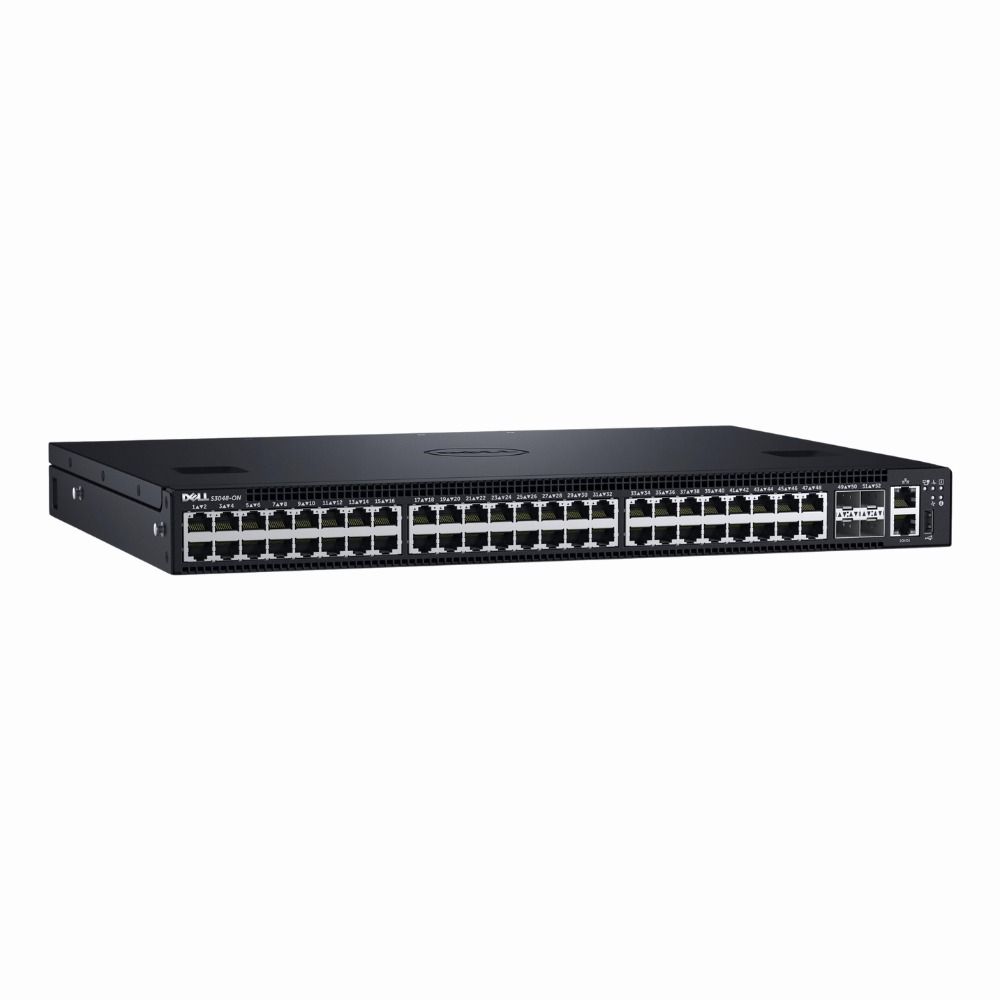

210-AEDO Dell PowerSwitch S-Series S3048-ON 48 x RJ-45 Ports 10/100/1000Base-T + 4 x SFP+ Ports Layer 3 Managed 1U Rack-mountable Gigabit Ethernet Network Switch

SKU:
210-AEDO
Weight: 5.00 lbs
Condition: Refurbished
  • 48 RJ-45 10/100/1000Base-T ports for versatile connectivity
  • 4 SFP+ ports supporting 10GbE uplinks
  • Layer 3 routing capabilities for advanced network management
  • 1U rack-mountable design suitable for data centers and enterprise racks
In stock

$921.08

Product Overview

The Dell PowerSwitch S3048-ON combines a high port count with Layer 3 capabilities, fitting neatly into rack environments. It serves as a solid choice for organizations needing a flexible, manageable switch that supports both traditional networking and modern software-defined approaches. Its mix of gigabit and 10GbE ports makes it adaptable to varied network demands and topologies.

General Information

Brand Dell
Part Number 210-AEDO
Condition Refurbished

Technical Information

Switch Ports 48
Number of Ports 48-Ports
Port Type 10/100/1000Base-T, SFP+
Port Speed 10/100/1000Base-T
UpLink Ports 4 x 10G SFP+
POE Support No
Switching Capacity 176 Gbps
Switch Forwarding Rate 130.95 Mpps
DRAM 2 GB
Flash Memory 512 MB
VLAN Support Yes
Max VLANs Supported 1-4094
Layer Support Layer 3
Connector Type RJ-45,SFP+

Performance

Jumbo Frame Support Up To 9216 Bytes
MAC Address Table Size 16000

Management and Configuration

Routing Protocols Static, RIP, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP, Policy-Based Routing (PBR)
Remote Protocols Yes
Management Interfaces CLI,Web GUI,SNMP,RMON,SSH,Telnet,Serial Console (RJ-45),USB Console
Security Features Access Control Lists (ACLs),802.1X,RADIUS,TACACS+,DHCP Snooping,IP Source Guard,Storm Control,Port Security,DoS Protection
Management Type In-band,Out-of-band
Remote Management Protocol SSH,Telnet,SNMP,HTTP,HTTPS
Routing Protocol Static,OSPF,OSPFv3,RIP,BGP,VRRP

Power & Cooling

Fans 2 (hot-swappable, variable speed)

Physical Characteristics

Dimensions 1.73 x 17.3 x 16.9 in
Weight 5.00
Operating Temperature 0 to 45 C

Miscellaneous

Compliance Standards WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1X,IEEE 802.3x


Product Description

The Dell PowerSwitch S3048-ON is a robust network switch designed to handle high-demand environments efficiently. It provides 48 gigabit Ethernet ports along with 4 SFP+ slots that offer flexible uplink options to connect to core networks or aggregation layers. Often found in enterprise data centers and medium to large office networks, this switch supports advanced Layer 3 features to manage routing between subnets.

Built for IT professionals looking to optimize network performance and scalability, the S3048-ON supports both traditional and software-defined networking environments. Its rack-mountable compact design fits neatly into standard 19-inch racks, making deployment straightforward.

Key Features

  • High-density gigabit connectivity with 48 RJ-45 ports to support numerous devices
  • Four 10GbE SFP+ ports for fast uplinks and expansion
  • Advanced Layer 3 protocols enable efficient routing and network segmentation
  • Supports open network OS options for customization and automation
  • Energy-efficient design reduces power consumption in busy network setups

This switch is typically deployed in enterprise environments where reliable, high-speed connectivity is crucial. It is well suited for campus networks, server farms, and any setup that demands both capacity and intelligent traffic management. Users benefit from its blend of performance and flexibility, helping maintain smooth data flows without unnecessary complexity.


Use Cases

The Dell PowerSwitch S3048-ON is ideal for enterprise and data center environments that require high-density gigabit connectivity combined with scalable 10GbE uplinks. Network administrators managing virtualization platforms or storage clusters benefit from its Layer 3 routing features and flexible port configuration in a compact 1U form factor.

How It's Used:

  • Aggregating server connections in medium to large data centers supporting virtualization workloads.
  • Providing high-performance access layer switching for enterprise IT networks with mixed gigabit and 10GbE requirements.
  • Enabling network segmentation and inter-VLAN routing in campus environments with Layer 3 capabilities.
  • Supporting edge computing deployments requiring compact rack-mounted network infrastructure.
  • Facilitating resilient uplinks to core switches or storage arrays through SFP+ ports in high-availability setups.

Through its combination of port density, Layer 3 functionality, and rack compatibility, the S3048-ON streamlines network operations while supporting growth and evolving topologies. This ensures efficient traffic flow and scalability in demanding enterprise and data center networks.
