| Product Overview |
|---|

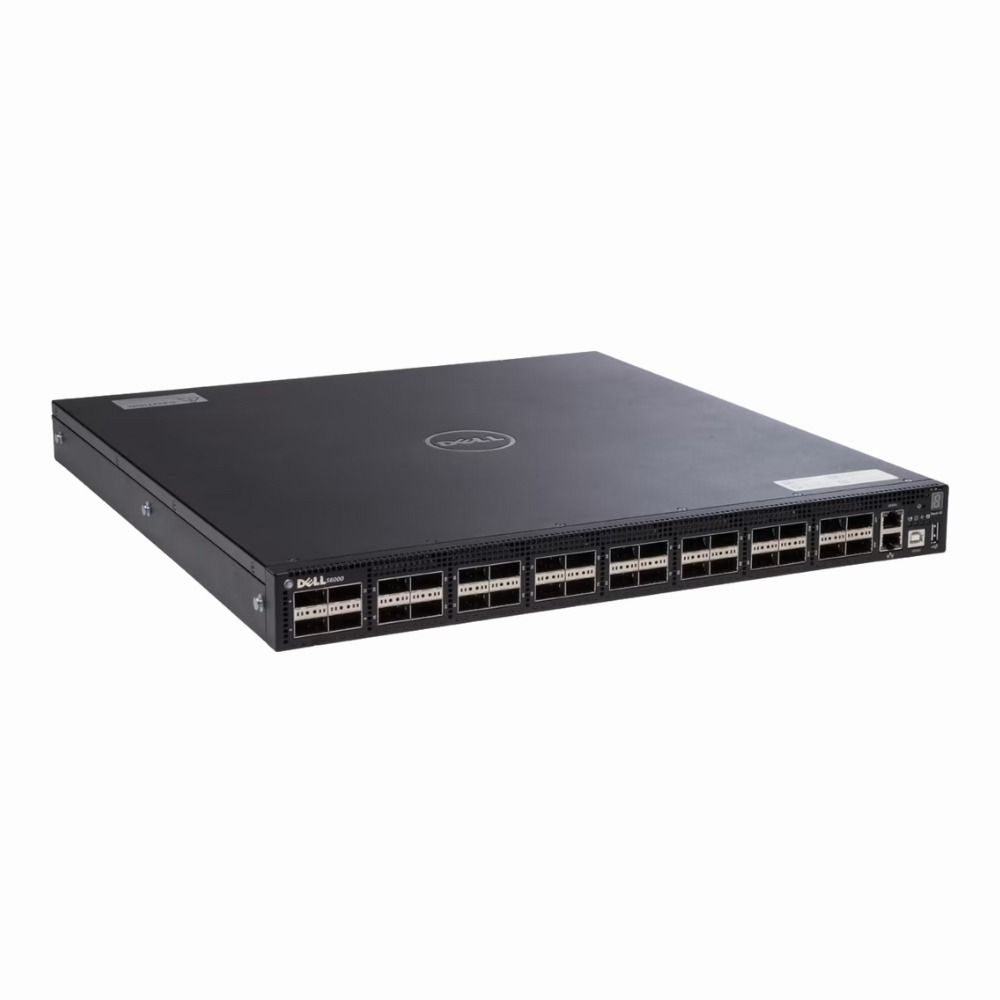

The Dell S6000 switch is a versatile Layer 3 managed network device that combines 32 Gigabit Ethernet ports with high-speed 40 Gigabit QSFP uplinks. It's well-suited for enterprise and data center networks, providing reliable routing and scalable connectivity without unnecessary complexity. |
| General Information | |
|---|---|
| Brand | Dell |
| Part Number | 1CPX7 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 32 |
| Number of Ports | 32-Ports |
| Port Type | 1000Base-T, 40G QSFP+ |
| Port Speed | 10/100/1000 Mbps (access), 40 Gbps (uplink) |
| UpLink Ports | 4 |
| POE Support | No |
| Switching Capacity | 384 Gbps |
| Switch Forwarding Rate | 750 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,QSFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, RIPng, OSPF, OSPFv3, EIGRP, BGP, IS-IS, VRRP, HSRP, GLBP, PIM-SM, PIM-DM, IGMP, MLD, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Management Interfaces | CLI, Web GUI, SNMP (v1/v2/v3), SSH, Telnet, RMON |
| Security Features | ACLs, 802.1X, Port Security, RADIUS, TACACS+, DHCP Snooping, IP Source Guard, Storm Control, DoS Protection |
| Security | 802.1X, RADIUS, TACACS+, SSH, SSL |
| Remote Management Protocol | SNMP, SSH, Telnet, HTTP, HTTPS |
| Routing Protocol | Static, RIP, OSPF, BGP, VRRP |
| Power & Cooling | |
|---|---|
| Fans | Hot-swappable, redundant (front-to-back airflow) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.7 x 17.2 x 18.9 inches |
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x |
| Product Description |
|---|
The Dell S6000 switch is designed to handle demanding network environments by offering a combination of high port density and Layer 3 routing features. It's commonly found in data centers and enterprise settings where reliable and fast network management is crucial. Built for IT professionals and network administrators, this switch supports seamless integration into existing infrastructure, making it ideal for organizations needing scalable and manageable network solutions. Key Features
This switch is typically deployed in mid-sized to large enterprise networks and data centers where both speed and management flexibility are required. It helps maintain smooth communication between network segments and supports the growing need for bandwidth in modern infrastructures. |
