| Product Overview |
|---|

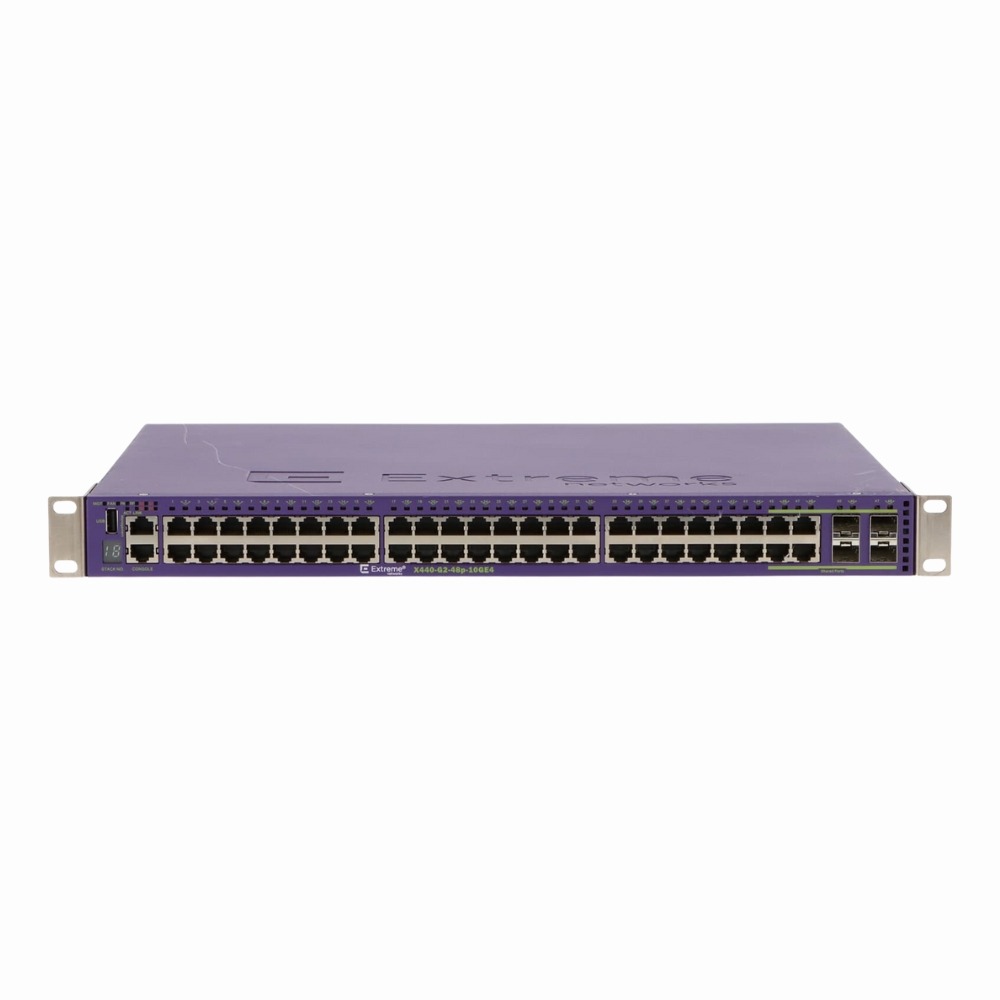

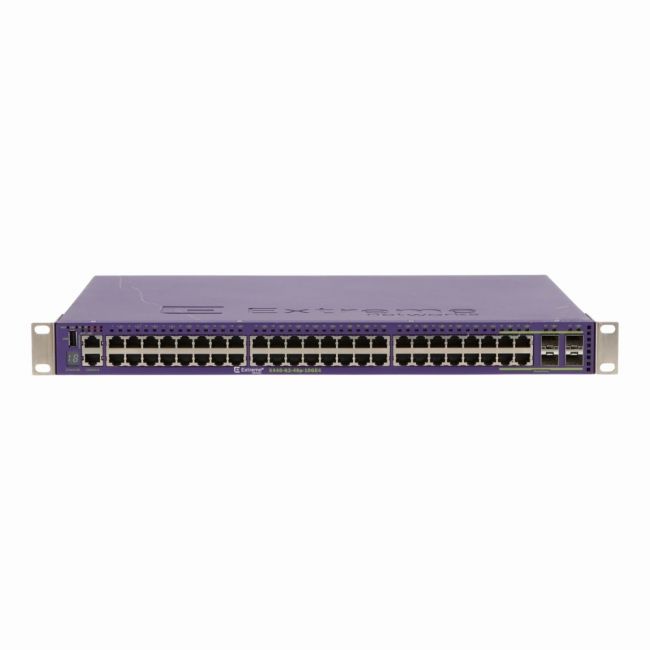

The Extreme Networks 16535-2 switch combines high-density PoE+ ports with flexible fiber uplinks and Layer 3 management, making it a versatile choice for enterprise network setups. It fits well in environments that demand reliable power delivery to edge devices along with sophisticated routing capabilities to handle complex network traffic. |
| General Information | |
|---|---|
| Brand | Extreme Networks |
| Part Number | 16535-2 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 3, Managed Switch |
| Form Factor | Rack-Mountable |
| Switch Ports | 48 x 10/100/1000Base-T RJ-45 (PoE+) |
| Number of Ports | 52-Ports |
| Port Type | 10/100/1000Base-T, Combo RJ-45/SFP, SFP |
| Port Speed | 1 Gbps (RJ‑45), 1 Gbps/10 Gbps upgradeable on SFP/uplink ports |
| UpLink Ports | 2 x 1G SFP, 6 x 1G SFP (combo) |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.9 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45 (8P8C), SFP (mini-GBIC) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | ~32,000 MAC address entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP |
| Remote Protocols | Web GUI, Command Line Interface (CLI), SNMP v1/v2/v3, SSH, RADIUS, TACACS+ |
| Remote Management Protocol | SNMP, SSH, Telnet, HTTP, HTTPS, RMON |
| Routing Protocol | Static, OSPF, BGP, RIP, VRRP |
| Power & Cooling | |
|---|---|
| Fans | Hot-swappable, variable-speed fans |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73″ × 17.4″ × 14.5″ |
| Weight | 15.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w |
| Product Description |
|---|
This Extreme Networks switch offers a robust solution for medium to large enterprise networks requiring both power over Ethernet and high-speed fiber connections. It's commonly found in office environments, data centers, and campus networks where reliable, managed Layer 3 switching is essential. Built for IT professionals who need granular control over traffic, security, and network segmentation, this switch supports seamless integration of wired devices and uplinks with fiber optics. Key Features
Typically deployed in enterprise networks where both power delivery and advanced traffic routing are required, this switch helps simplify infrastructure while supporting diverse device connectivity. Its role often extends to core or distribution layers, facilitating smooth communication across network segments without compromising performance. |
