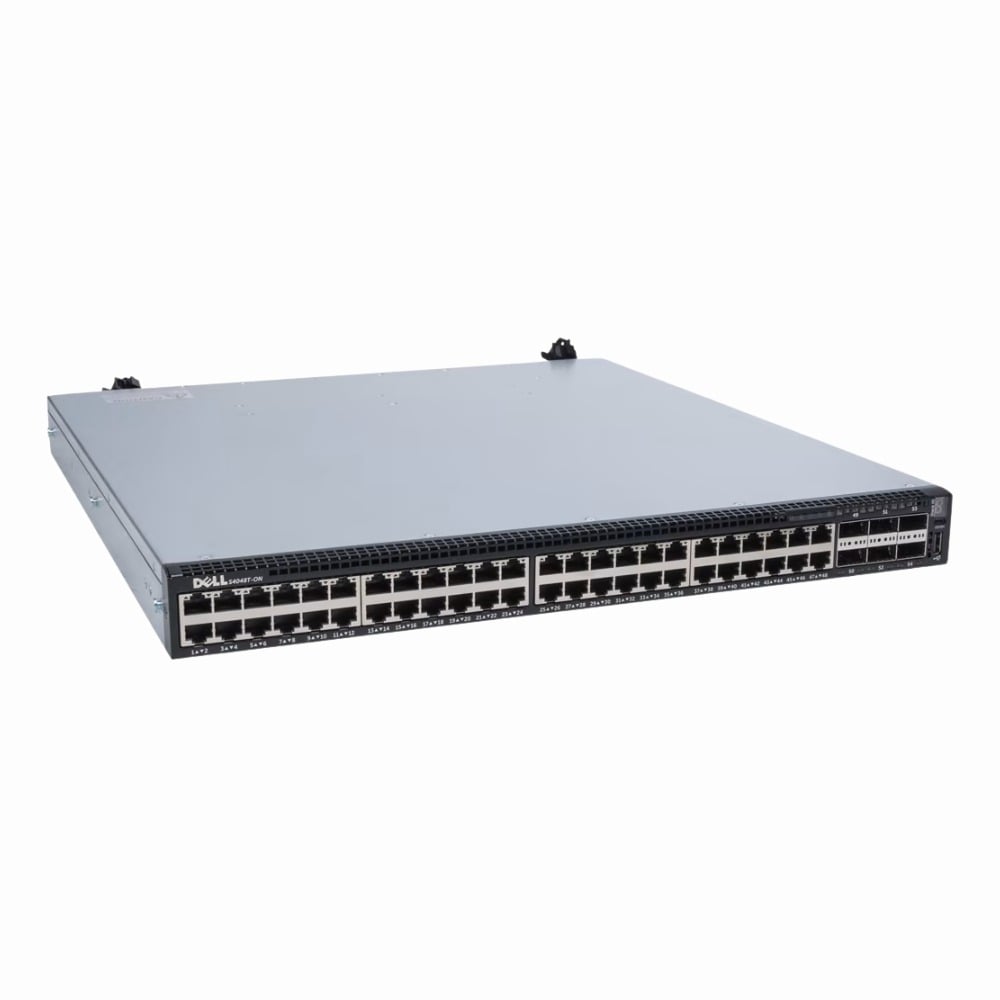

0YVCK0 Dell EMC PowerSwitch S4048T-ON 48 x SFP+ Ports 10GBase-T + 6 x QSFP+ Ports 40GBase-X Layer 3 Managed 1U Rack-mountable Gigabit Ethernet Network Switch
SKU:
0YVCK0
Weight: 4.00 lbs
Condition: Refurbished
- 48 SFP+ ports supporting 10Gbps speeds for high-speed connectivity
- 6 QSFP+ ports offering 40Gbps uplinks for aggregation
- Layer 3 managed switch with advanced routing capabilities
- 1U rack-mountable design suitable for data center racks
In stock
$1,844.00
| Product Overview |
|---|
The Dell EMC PowerSwitch S4048T-ON is a high-performance 1U rack-mountable Ethernet switch featuring 48 10G SFP+ ports alongside 6 40G QSFP+ ports. It's designed to serve as a flexible Layer 3 managed switch that fits well in both data center and enterprise network environments, providing the necessary speed and management capabilities for demanding networking tasks. |
| General Information | |
|---|---|
| Brand | Dell EMC |
| Part Number | 0YVCK0 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 3 |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 × 1/10 GbE RJ‑45 + 6 × 40 GbE QSFP+ |
| Number of Ports | 48-Ports |
| Port Type | 10GBase-T, 40G QSFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 100 Mbps/1 Gbps/10 Gbps for RJ‑45; 40 Gbps for QSFP+ |
| UpLink Ports | 6 |
| POE Support | No |
| Switching Capacity | 1.44 Tbps |
| Switch Forwarding Rate | 1,080 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,QSFP / QSFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, RIPng, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP, MLD, Policy-Based Routing (PBR) |
| Remote Protocols | Yes |
| Management Interfaces | CLI (SSH/Telnet),Web GUI (HTTP/HTTPS),SNMPv1/v2/v3,Serial Console (RJ-45),USB Console |
| Security Features | 802.1X,Access Control Lists (ACLs),SSH,SSL/TLS,RADIUS,TACACS+ |
| Remote Management Protocol | SNMPv1/v2/v3,SSH,Telnet,HTTP/HTTPS |
| Routing Protocol | Static,RIP,OSPF,BGP,VRRP |
| Power & Cooling | |
|---|---|
| Fans | Hot-swappable redundant fans (2) |
| Power | AC 100-240V, 50/60Hz |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 18.9 in |
| Weight | 4.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3x |
| Product Description |
|---|
The Dell EMC PowerSwitch S4048T-ON is a versatile network switch built for environments demanding high bandwidth and low latency. It is commonly found in data centers and enterprise networks where fast, reliable connections are essential. Often deployed by network administrators and IT teams, this switch handles intensive traffic and complex routing tasks effectively. Its combination of 10G and 40G ports allows for flexible network topologies and smooth integration into existing infrastructures. Key Features
This switch is typically seen in core or aggregation layers of enterprise and data center networks, handling critical workloads and reducing bottlenecks. Its robust design and rich feature set make it a reliable foundation for scalable network deployments. |
