| Product Overview |
|---|

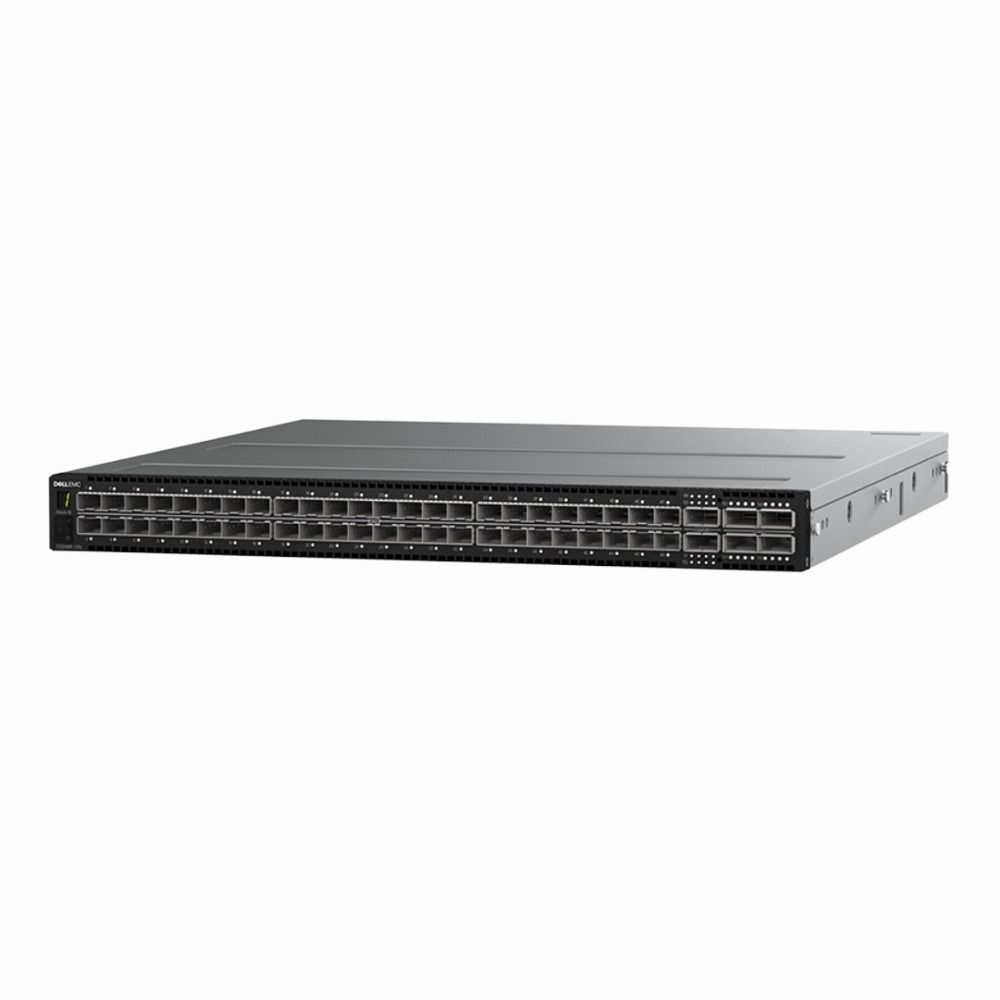

The Dell EMC Networking S5248F-ON switch delivers high-performance connectivity with its 48 10/25GbE ports, making it a solid choice for data center and enterprise network environments. It's built to support open networking standards, allowing users to select the operating system that best suits their setup. This flexibility, combined with its robust feature set for both Layer 2 and Layer 3 networking, positions it as a reliable and adaptable switch for managing complex network traffic efficiently. |
| General Information | |
|---|---|
| Brand | Dell |
| Part Number | 0P27YT |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 x SFP+ (10GbE) |
| Number of Ports | 48-Ports |
| Port Type | SFP+, QSFP / QSFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 1Gbps,10Gbps,40Gbps |
| UpLink Ports | 6 x QSFP+ (40GbE) |
| POE Support | No |
| Switching Capacity | 1.44 Tbps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | SFP+,QSFP+,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, OSPF, BGP, VRRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Security Features | ACLs, IEEE 802.1X, RADIUS, TACACS+, SSH, DHCP Snooping, IP Source Guard |
| Management Type | In-band and Out-of-band (CLI/SNMP/Serial) |
| Security | ACLs,802.1X,RADIUS,TACACS+,SSH |
| Remote Management Protocol | SSH,Telnet,SNMP,HTTP/HTTPS |
| Routing Protocol | Static,OSPF,BGP,RIP,VRRP |
| Power & Cooling | |
|---|---|
| Fans | Redundant hot-swappable fans |
| Power | AC 100-240V, 50-60Hz |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3x |
| Product Description |
|---|
The Dell EMC Networking S5248F-ON is a powerful switch designed to handle demanding network environments. It's often found in data centers and enterprise networks where high bandwidth and low latency are critical. Built for IT professionals and network operators, it provides flexible connectivity for storage, compute, and core network layers. This switch supports Open Networking with ONIE, allowing users to load various network operating systems that best fit their infrastructure needs. Its 48 high-speed ports help manage large amounts of traffic efficiently and reliably. Key Features
This switch is commonly deployed in modern data centers, cloud environments, and enterprise networks where scalability and performance are key. Its ability to integrate with multiple operating systems makes it a versatile choice for organizations looking to customize their network architecture. Overall, it helps streamline network traffic and supports growing infrastructure needs without compromising speed or reliability. |
