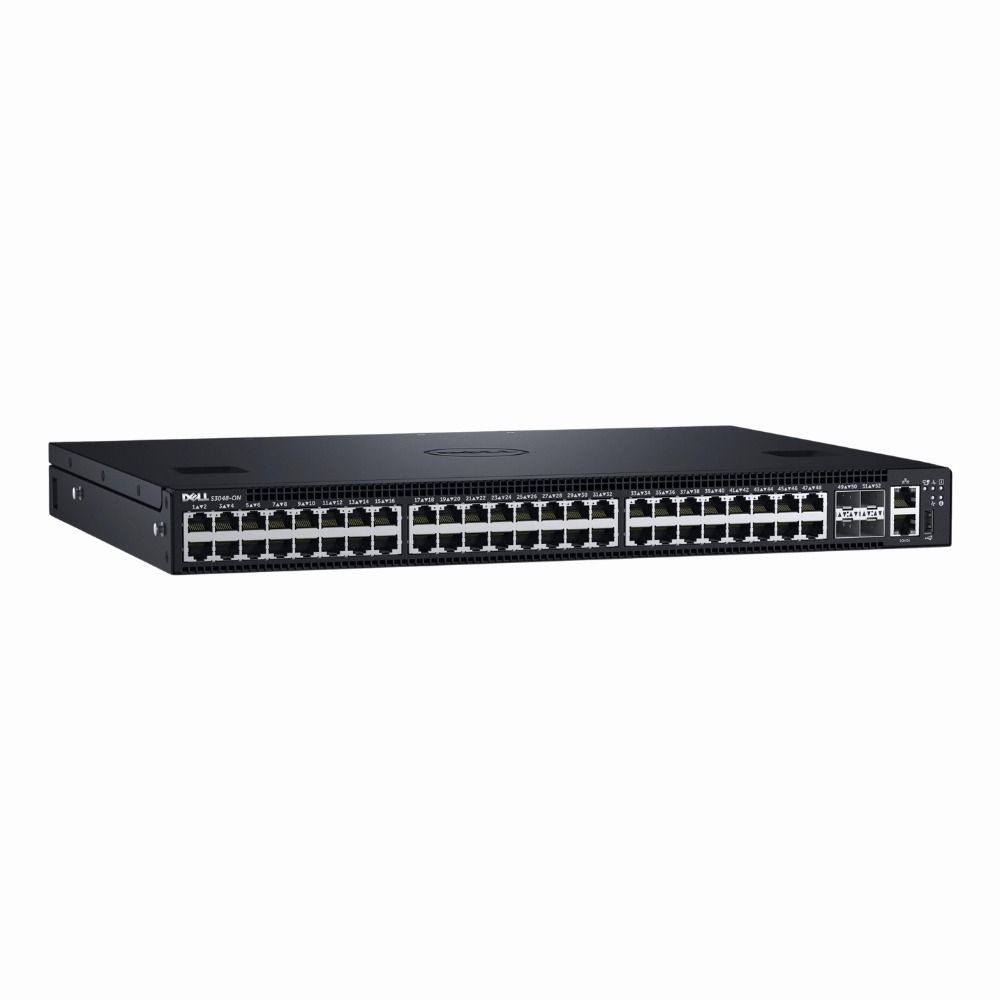

Name: 0DTJ7 Dell PowerSwitch S3048-ON 48x1GbE RJ-45 + 4x10GbE SFP+ L3 Switch
Brand: Dell
SKU: 0DTJ7
Price: 726.27 USD
Availability: InStock
Rating: 4.8 (124 reviews)

Product Overview
The Dell PowerSwitch S3048-ON delivers a blend of gigabit access and 10Gbps uplinks for flexible network deployment. It fits well in setups requiring both high-density port availability and Layer 3 routing within a compact 1U rack space.

General Information
Brand	Dell
Part Number	0DTJ7
Condition	Refurbished

Technical Information
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, SFP+
Port Speed	10/100/1000Base-T
UpLink Ports	4 x 10G SFP+
POE Support	No
Switching Capacity	176 Gbps
Switch Forwarding Rate	343.75 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static, RIP, OSPF, OSPFv3, BGP, VRRP, HSRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	CLI, Web GUI, SNMP, SSH, Telnet, RMON
Security Features	802.1X authentication, ACLs, Port security, DHCP snooping, IP Source Guard, Storm control, SSH, SSL, MAC ACLs
Remote Management Protocol	SNMP, SSH, HTTP/HTTPS

Power & Cooling
Fans	Variable-speed, front-to-back (hot-swappable)

Physical Characteristics
Dimensions	1U rack-mount (approx. 44 x 442 x 412 mm)
Weight	5.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X, IEEE 802.3ad (LACP), IEEE 802.3az (Energy Efficient Ethernet)

Product Description
The Dell PowerSwitch S3048-ON is a versatile network switch built for environments that require reliable gigabit connectivity with advanced management features. It’s commonly found in enterprise data centers and campus networks where Layer 3 routing and high port density are necessary. This switch often serves network administrators who need to manage traffic efficiently across multiple VLANs and link aggregation groups. Its mix of 48 RJ-45 ports alongside 4 high-speed SFP+ uplinks makes it a flexible solution for various network architectures. Key Features Supports both standard gigabit Ethernet and 10Gbps uplinks for scalable performance Delivers Layer 3 routing functions including static routes and dynamic protocols Designed for 1U rack spaces, saving room in crowded racks Offers extensive management options including CLI, SNMP, and web-based interfaces Provides robust security features like ACLs and port authentication The switch is typically deployed in mid-to-large sized networks where both high port count and routing versatility are needed. By combining solid Layer 3 features with a compact design, it complements existing network infrastructure without adding complexity.

Use Cases
The Dell PowerSwitch S3048-ON is ideal for environments needing reliable, high-density gigabit access combined with advanced Layer 3 routing. It is particularly suited for enterprise IT infrastructures, campus networks, and data centers requiring scalable and efficient network segmentation. How It's Used: Supporting virtualization environments in data centers by connecting multiple servers with high throughput and low latency. Deploying in enterprise campus networks to segment traffic and enable inter-VLAN routing with Layer 3 capabilities. Providing network access in SMB branches where space is limited yet high port density and uplink speeds are necessary. Aggregating links in storage clusters to optimize data flow between storage arrays and compute resources. Serving as a top-of-rack switch in rack deployments to streamline cabling and improve network management. This switch enhances operational efficiency by combining dense gigabit connectivity with 10Gbps uplinks and routing functionalities, enabling scalable network growth and improved traffic management in complex IT environments.
