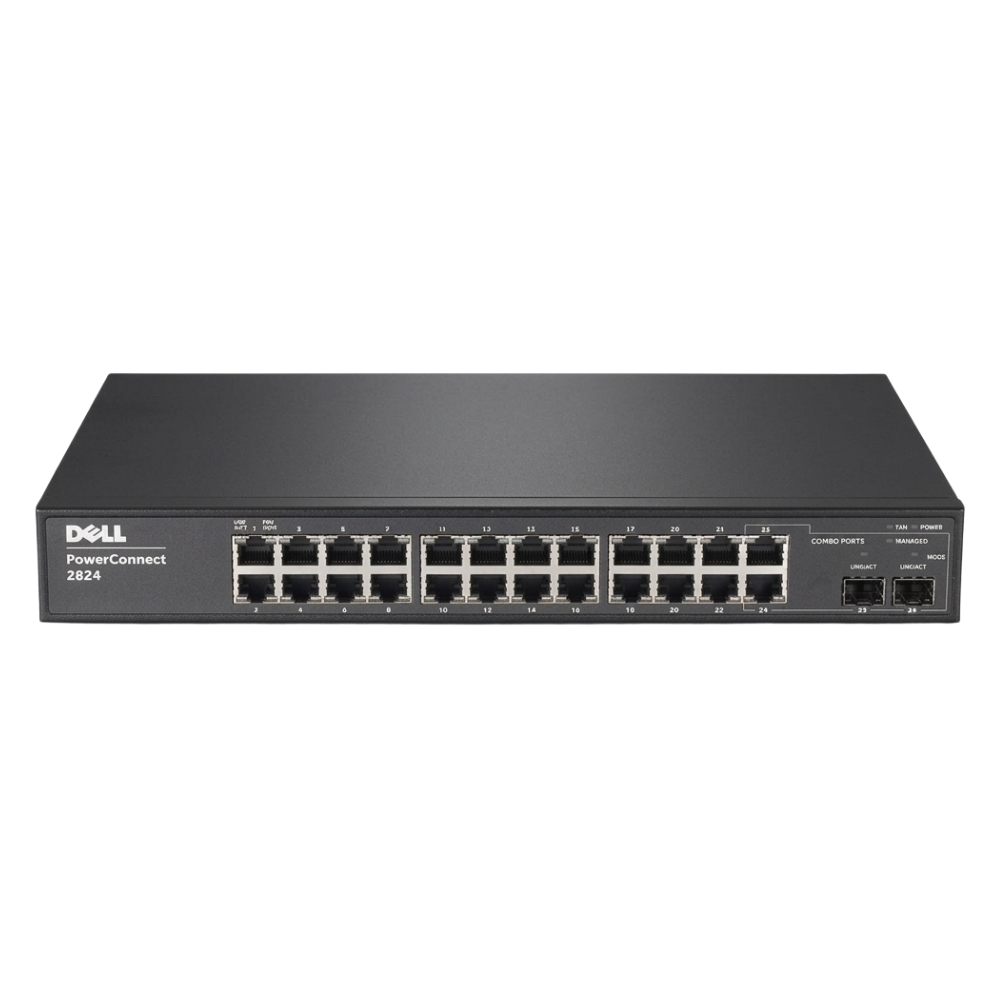

Name: 0CT4H Dell 2824 24-Port + 2-Port SFP Layer 3 Managed Switch
Brand: Dell
SKU: 0CT4H
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (125 reviews)

Product Overview
The 0CT4H - Dell 2824 24-Port + 2-Port SFP Layer 3 Switch provides integrated routing and switching, making it a versatile component in corporate networks. It fits into network environments where flexible connectivity and advanced traffic management are necessary without adding complexity.

General Information
Brand	Dell
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	24
Number of Ports	26-Ports
Port Type	10/100Base-TX, 1000Base-X, SFP, Serial Console (RJ-45)
Port Speed	10/100Base-TX
UpLink Ports	2 x SFP (1000Base-X)
POE Support	No
Switching Capacity	8.8 Gbps
Switch Forwarding Rate	17.2 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 3
Connector Type	RJ-45,SFP,Serial Console (RJ-45)

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	8000

Management and Configuration
Routing Protocols	Static, RIP
Remote Protocols	Yes
Management Interfaces	Web GUI (HTTP/HTTPS), CLI (SSH/Telnet), SNMP (v1/v2/v3), Serial Console
Security Features	Access Control Lists (ACLs), 802.1X, RADIUS, TACACS+, SSH
Management Type	In-band and Out-of-band
Remote Management Protocol	SNMPv1/v2/v3, SSH, Telnet, HTTP, HTTPS
Routing Protocol	Static,RIP

Power & Cooling
Fans	Internal fan (variable speed)
Power	Internal AC 100-240V, 50-60Hz
Power Supply	Internal fixed power supply

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 40°C

Miscellaneous
Assembly Required	No
Compliance Standards	RoHS, CE, FCC
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x

Product Description
The 0CT4H - Dell 2824 is a Layer 3 switch that combines 24 Ethernet ports with 2 SFP slots, providing flexibility for both copper and fiber connections. It is commonly found in network infrastructures where routing and switching are required at the access or distribution layer. Built for organizations managing medium to large networks, it supports users who need reliable traffic control and segmentation capabilities. Network administrators benefit from its routing features and port density in environments demanding robust connectivity. Key Features Enables routing protocols to manage inter-VLAN traffic efficiently Offers flexible port configurations for mixed media connections Delivers Layer 3 performance suitable for complex network topologies Includes management tools compatible with enterprise network standards Supports quality of service (QoS) for prioritizing critical data flows This switch plays a critical role in network architectures by bridging routing and switching in a single device. Its reliability and throughput make it a solid choice for sustained network operation and performance integrity.

Use Cases
The 0CT4H switch is typically deployed in mid-sized enterprise networks and data centers where efficient routing and switching are essential. It supports environments that require a balance between port density and advanced Layer 3 features for network segmentation. How It's Used: Integrating into rack deployments to manage traffic between VLANs in enterprise IT networks Providing fiber uplinks in campus network distributions for enhanced bandwidth Serving as a core switch in small to medium data centers for routing workloads Supporting edge computing setups where mixed copper and fiber connections are needed Facilitating network segmentation and traffic management in storage clusters Its deployment helps maintain network efficiency and scalability by offering integrated routing and switching in a single device. This supports operational continuity and performance across diverse network demands.
