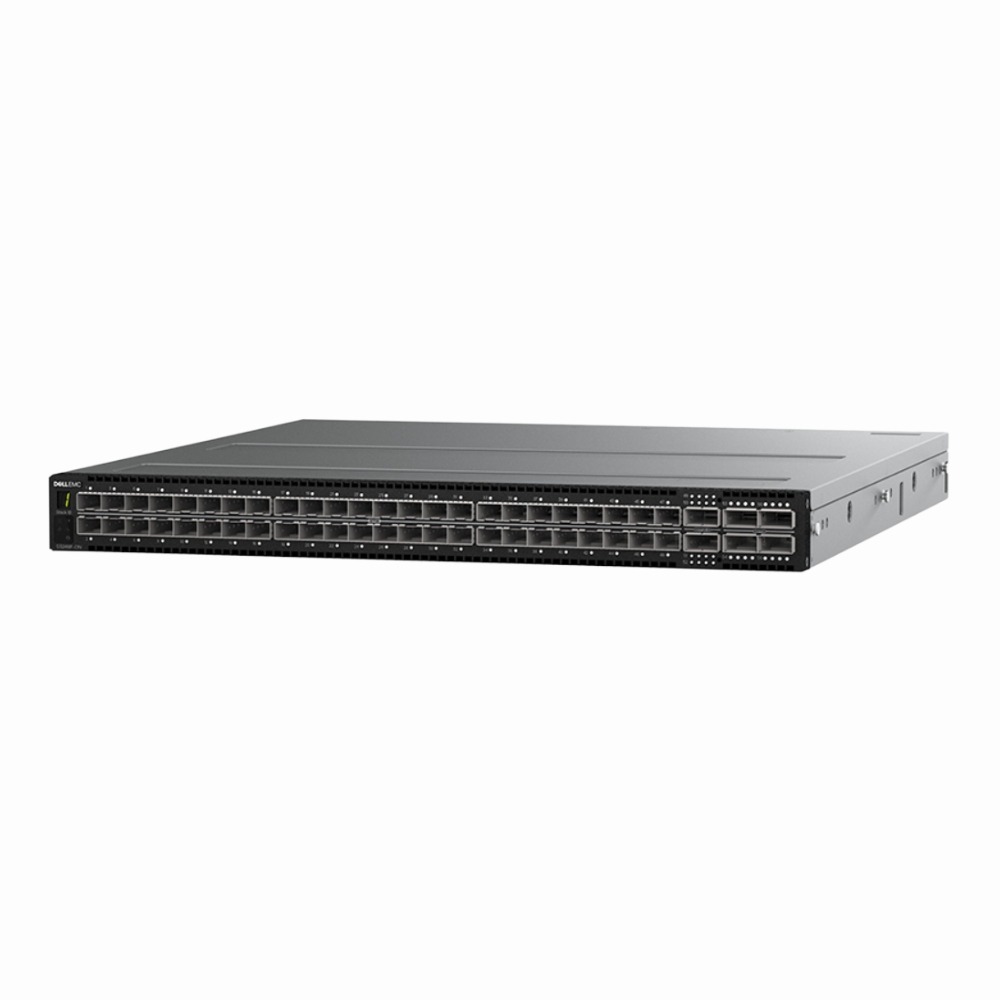

Name: 06Y6V Dell S5248F-On 48-Ports 25GBase-X SFP28 4-Ports 100GBase-X QSFP28 2-Ports 200GBase-X QSFP28-DD Layer 3 Managed Rack-mountable 1U Network Switch
Brand: Dell
SKU: 06Y6V
Price: 2934.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Dell S5248F-On network switch provides a blend of high-speed connectivity options and robust Layer 3 management within a compact rack-mountable unit. It fits well in data center setups requiring flexible port configurations and scalable performance without compromising on routing capabilities or space efficiency.

General Information
Brand	Dell
Part Number	06Y6V
Condition	Refurbished

Technical Information
Switch Ports	48
Number of Ports	48-Ports
Port Type	25G SFP28, 100G QSFP28, USB Console, Serial Console (RJ-45)
Port Speed	25Gbps,100Gbps,200Gbps
UpLink Ports	4 x 100G QSFP28, 2 x 200G QSFP28-DD
POE Support	No
Switching Capacity	4 Tbps
Switch Forwarding Rate	7,812.5 Mpps
DRAM	8 GB
Flash Memory	32 GB
VLAN Support	Yes
Max VLANs Supported	1-4094
Layer Support	Layer 3
Connector Type	SFP28,QSFP28,QSFP28-DD,RJ-45,USB

Performance
Latency	Sub-microsecond to low microsecond (line-rate)
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	128000

Management and Configuration
Routing Protocols	Static, RIP, RIPng, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Serial Console (RJ-45), USB Console, SSH, Telnet, SNMP, Web GUI, REST API
Management Type	In-band and Out-of-band (Console/SSH/Web/SNMP)
Security	Yes
Remote Management Protocol	SNMP, SSH, Telnet, HTTPS/REST
Routing Protocol	Static, OSPF, BGP, RIP, VRRP

Power & Cooling
Fans	2 hot-swappable redundant fans
Power	100-240 VAC, 50-60 Hz
Power Supply	Dual hot-swappable AC power supplies (redundant)

Physical Characteristics
Dimensions	1.72 x 17.5 x 17.5 inches (43.6 x 445 x 445 mm)
Weight	5.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Compliance Standards	WEEE, RoHS, CE, FCC, cULus
Compliant Standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1w

Product Description
The Dell S5248F-On is a versatile network switch designed to handle demanding data center environments. It offers a mix of high-speed 25G, 100G, and 200G ports that accommodate various network traffic needs and provide excellent scalability. Often found in enterprise data centers and cloud service providers, this switch supports complex Layer 3 routing and management, making it suitable for IT professionals and network engineers who need reliable performance and flexibility. Key Features Supports dense 25GBase-X SFP28 connections for server and storage links Includes 100GBase-X QSFP28 ports ideal for uplink aggregation Equipped with 200GBase-X QSFP28-DD ports for future-proof bandwidth demands Layer 3 switching enables advanced routing protocols and traffic management Compact 1U rack-mountable design fits standard data center racks This switch is typically deployed in environments where consistent low latency and high throughput are critical, such as virtualized data centers and large-scale storage networks. Its combination of port speeds and management features helps maintain smooth network operation under heavy workloads.

Use Cases
The Dell S5248F-On switch is designed for environments that demand high throughput and advanced Layer 3 capabilities, such as data centers and high-performance computing clusters. It is particularly suited for enterprises and service providers requiring scalable, low-latency network fabrics with a mix of 25G, 100G, and 200G connectivity options. How It's Used: Deploying high-density server clusters in data centers to support virtualization and containerized workloads. Aggregating traffic from multiple storage arrays in enterprise storage area networks (SANs) to ensure reliable data access. Supporting hyperscale cloud environments requiring flexible uplink speeds for rapid data transfer and interconnectivity. Implementing high-speed spine switches in leaf-spine architectures to optimize east-west traffic flow. Providing network infrastructure for edge computing sites where space and power efficiency are critical. Enabling telecommunications carriers to manage multi-tenant network environments with advanced routing and segmentation. This switch enhances operational efficiency by consolidating various high-speed port types into a single chassis, facilitating scalable network growth. Its Layer 3 management features enable flexible routing to support complex topologies while maintaining low latency and high throughput essential for demanding enterprise and cloud workloads.
