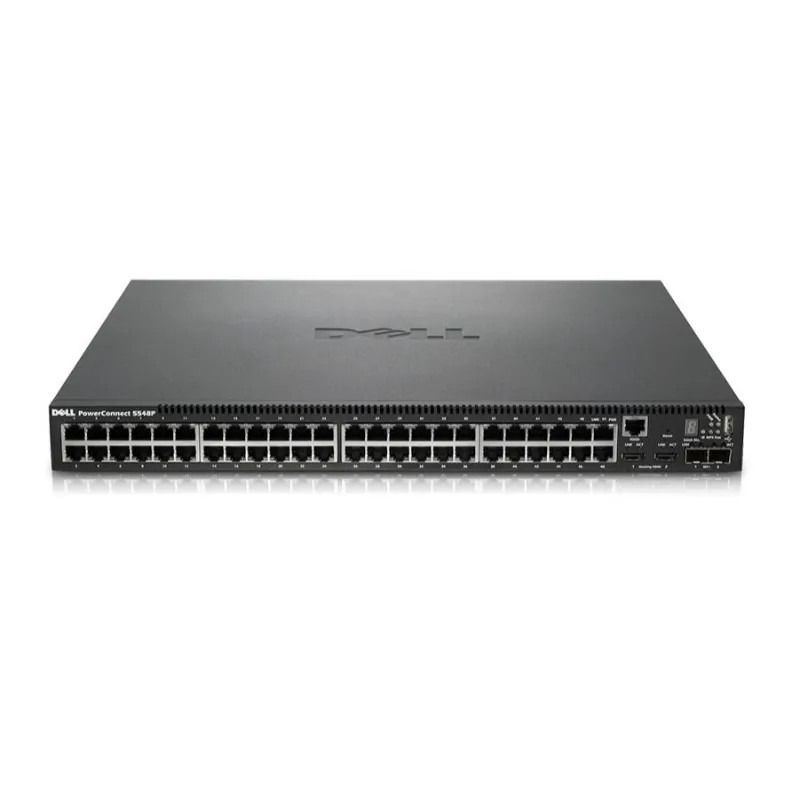

Name: 032YKV Dell PowerConnect 5548P 48-Ports 10/100/1000 + 2x 10 Gigabit SFP Managed Switch
Brand: Dell
SKU: 032YKV
Price: 791.21 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Dell 032YKV PowerConnect 5548P is a robust managed Layer 3 switch offering high scalability and performance for enterprise networks. Featuring 48 PoE ports, dual 10GbE uplinks, and comprehensive routing protocol support, it meets the needs of modern, high-traffic network infrastructures. With advanced security features and remote management capabilities, this switch ensures efficient network operation while providing reliable connectivity and power to connected devices.

General Information
Brand	Dell
Part Number	032YKV
Condition	Refurbished

Technical Information
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48 x 10/100/1000Base-T (PoE) + 2 x 10GbE SFP+
Number of Ports	48-Ports
Switching Capacity	176 Gbps
Switch Forwarding Rate	130.95 Mpps
DRAM	2 GB
Flash Memory	512 MB
Max VLANs Supported	4,094
NIM Slot	2
Connector Type	RJ-45 (Ethernet), SFP+ (Fiber)

Performance
Latency	< 2 µs (typical)
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	16,000 entries

Management and Configuration
Management Type	Web GUI, CLI, SNMP v1/v2/v3, RMON, Telnet, SSH, HTTP/HTTPS, RADIUS, TACACS+
Security	802.1X, ACLs, Port Security, Storm Control
Remote Management Protocol	CLI, SNMP, HTTP/HTTPS, Telnet/SSH, RADIUS, TACACS+
Routing Protocol	Static Routing, RIP v1/v2, OSPF v2/v3, BGP v4

Power & Cooling
Fans	2 x Hot-swappable 40mm fans
Power	1,000W
Power Supply	2 x 750W AC Redundant Hot-Plug Power Supplies

Physical Characteristics
Dimensions	4.3 x 44.5 x 31.8 cm
Weight	5.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at

Product Description
The Dell 032YKV PowerConnect 5548P is a high-performance managed Layer 3 switch, ideal for enterprise-level networking. With 48 PoE-enabled Gigabit Ethernet ports and 2 x 10GbE SFP+ uplink ports, it offers flexibility and scalability for demanding business environments. This switch is designed to deliver fast, reliable connectivity with a switching capacity of 176 Gbps and a forwarding rate of 130.95 million packets per second. It supports advanced IPv4 and IPv6 routing, including protocols like OSPF and BGP v4, ensuring efficient data routing across large networks. Additionally, the 2GB DRAM and 512MB flash memory provide optimal performance and support for extensive network configurations. Key Features 48 x 10/100/1000Base-T PoE ports for flexible power and data transmission 2 x 10GbE SFP+ ports for high-speed fiber connectivity 176 Gbps switching capacity with a forwarding rate of 130.95 Mpps IPv4 and IPv6 routing support with 4,000 and 2,000 entries respectively Layer 3 functionality with support for Static Routing, RIP, OSPF, and BGP Dual 750W AC redundant hot-plug power supplies for maximum uptime Web GUI, CLI, SNMP, and remote management protocols for easy network administration Robust security with 802.1X, ACLs, Port Security, and Storm Control Low latency (< 2 µs) for efficient data processing This switch is designed for high-density network environments, delivering both power and data through its PoE ports, while ensuring maximum reliability and uptime with its redundant power supplies and hot-swappable fans.

Use Cases
The Dell PowerConnect 5548P switch is ideal for enterprise IT environments requiring high-density connectivity and robust network management. It is especially suited for organizations with complex Layer 3 routing needs and those running power-over-Ethernet (PoE) devices across campus or branch locations. How It's Used: Campus network core or distribution layer providing PoE power to IP phones, wireless access points, and security cameras. Enterprise data centers requiring 10GbE uplinks to aggregation switches to support virtualization and storage clusters. Branch office deployments where high port density and advanced routing protocols like OSPF and BGP ensure seamless WAN integration. Network edge environments demanding reliable power delivery with redundant power supplies for critical device uptime. Managed service provider infrastructures that need scalable Layer 3 switching with comprehensive traffic segmentation and security. This switch enhances network operational efficiency by integrating power delivery and high-speed uplinks within a scalable architecture. Its advanced routing capabilities and redundant power design support resilient and flexible network topologies in demanding enterprise scenarios.
