| Product Overview |
|---|

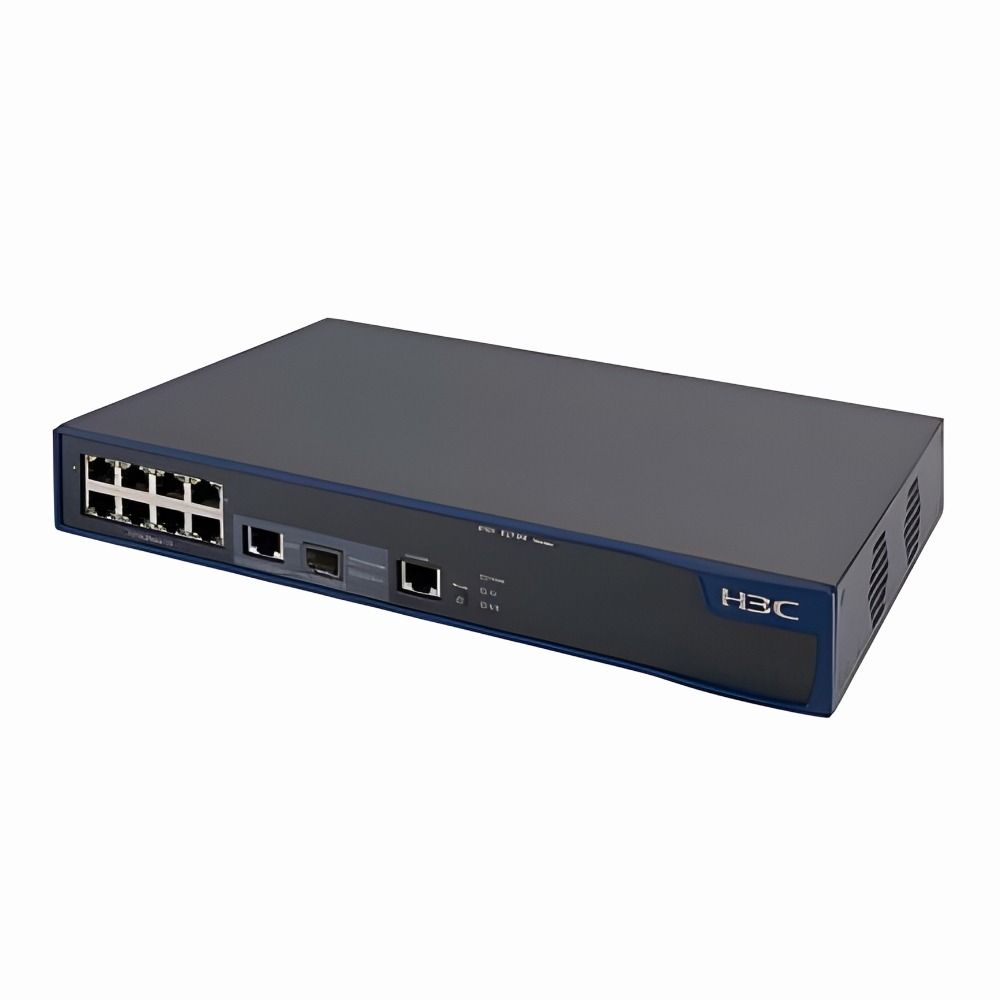

The H3C S3100-8TP-EI switch combines fiber and gigabit copper ports in a stackable design, making it a practical choice for networks requiring versatile connectivity and easy growth. It fits well in scenarios where long-distance fiber connections and fast local data transfers must coexist, providing a balance between performance and flexibility. |
| General Information | |
|---|---|
| Part Number | 0235A29Y-US |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 2 |
| Form Factor | Rack-Mountable |
| Switch Ports | 8 × 10/100 Base‑TX, 1 × 10/100/1000 Base‑T (Combo SFP) |
| Number of Ports | 8-Ports |
| Port Type | 10/100Base-TX, 10/100/1000Base-T, Combo RJ-45/SFP, SFP, Serial Console (RJ-45) |
| Port Speed | 10/100 Mbps (access), 1 Gbps uplink |
| UpLink Ports | 1 x SFP (mini-GBIC) shared with 1 x 10/100/1000Base-T (combo) |
| POE Support | No |
| Switching Capacity | 3.6 Gbps |
| Switch Forwarding Rate | 2.68 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | Up to 4K VLAN IDs supported |
| Stackable | Yes |
| Layer Support | Layer 3 Lite |
| Connector Type | RJ‑45 and SFP (combo) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9000 Bytes |
| MAC Address Table Size | 8000 entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI, Command Line (CLI), SNMP, RMON, Telnet, SSH |
| Security Features | 802.1X,ACLs,Port Security,MAC filtering,RADIUS,TACACS+,SSH,Storm Control |
| Management Type | Web UI, CLI, SNMP v1/v2/v3, Telnet/SSH |
| Security | RADIUS, TACACS+, port security, 802.1X, H3C IMC Endpoint Admission Defense |
| Remote Management Protocol | CLI, SNMP, HTTP/HTTPS, Telnet/SSH, RADIUS, TACACS+ |
| Routing Protocol | Static,RIP |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.7″ × 9.1″ × 7.9″ |
| Weight | 4.00 |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, CCC |
| Compliant Standards | IEEE 802.3, 802.3u, 802.3x, 802.3ad, 802.1Q VLANs, IGMP Snooping |
| Product Description |
|---|
The H3C S3100-8TP-EI is a compact Ethernet switch built for small to medium-sized networks that require a combination of fiber and copper connectivity. It's often found in environments where both fast data transfer and extended reach through fiber are necessary, such as branch offices or campus networks. Network administrators and IT professionals commonly use this switch to efficiently manage multiple devices while maintaining high performance and reliability. Its stackable capability makes scaling up straightforward without adding complex configuration overhead. Key Features
This switch is typically deployed in office settings, schools, or any place where mixed media connectivity is needed. It plays a crucial role in linking devices across different floors or buildings without compromising speed or connection quality. |
