Product Overview |
|---|

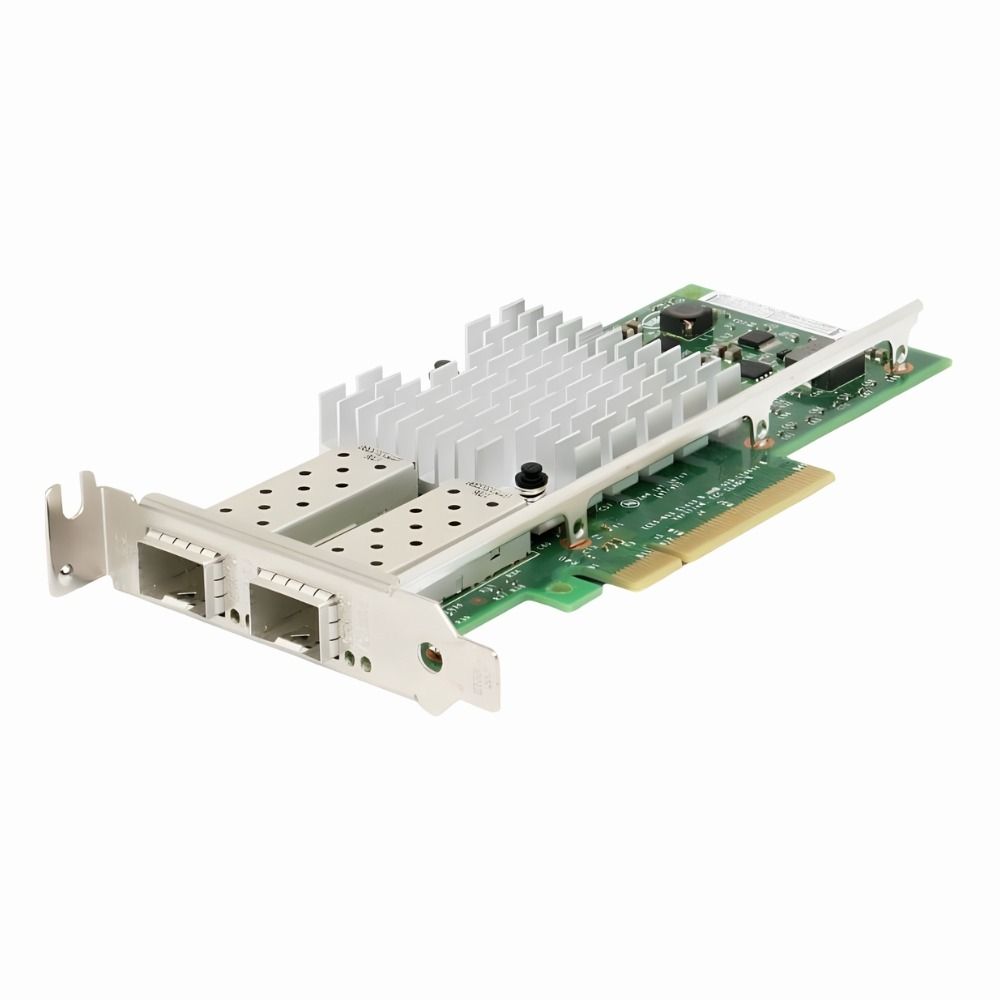

The Lenovo 00JY855 Intel X520-DA2 is a dual-port 10GB Ethernet adapter designed to deliver fast and reliable network connections in server environments. It fits into Lenovo systems to provide flexible SFP+ interfaces, supporting both fiber and direct attach cables, making it suitable for various data center applications. |
General Information |
|
|---|---|
| Brand | Lenovo |
| Part Number | 00JY855 |
| Alternate Part Number | 00JY855-16-HU |
Technical Information |
|
|---|---|
| Chipset/Controller | Intel X520 (82599-based) |
| Virtualization Support | SR-IOV, VMDq, NetQueue, vNIC |
| Data Rate (Speed) | 10GbE |
| Data Center Bridging | Yes |
| Storage Over Ethernet | iSCSI |
| Interface (Bus) | PCIe 2.0 x8 |
| Number of Ports | 2-Port (Dual) |
| OS Compatibility | Windows Server 2022, RHEL, VMware ESXi |
| Network Management | SNMP, RMON |
| Offload Support | iSCSI, PXE Boot, Wake-on-LAN (WoL), TCP Stateless Offload, Jumbo Frames |
| Bracket Height | Both Brackets Included |
Connectivity & Physical |
|
|---|---|
| Form Factor | Standard PCIe Card |
| Port Type | SFP+ |
| Cabling Type | AOC |
| Max Power Consumption | 6.6W (typical) |
| Dimensions | Low-profile: 2.7 x 6.6 x 0.7 inches (H x W x D) / 68.6 x 167.6 x 17.8 mm |
| Weight | 5.00 |
| Condition | Refurbished |
Miscellaneous |
|
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
Product Description |
|---|
This Lenovo 00JY855 adapter provides dual 10 Gigabit Ethernet ports, offering enhanced network throughput for demanding data environments. It is built for use in servers and enterprise systems requiring fast, stable connections, often found in data centers and virtualized setups. Key Features
This adapter is typically deployed in data centers and high-bandwidth environments where consistent performance is critical. It helps manage network loads effectively and supports virtualization setups by providing robust connectivity options. |
Use Cases |
|---|
The Lenovo 00JY855 Intel X520 DA2 network adapter is primarily utilized in data center and enterprise environments where high-throughput and low-latency network connectivity is essential. IT professionals managing virtualization platforms, storage area networks, or high-performance computing clusters benefit most from its dual 10GbE ports and SFP+ flexibility. How It's Used:
This adapter enhances network performance and scalability by delivering consistent 10GbE bandwidth with flexible interface options. Its compatibility with Lenovo hardware ensures seamless integration, supporting operational efficiency and network resiliency in demanding IT environments. |
